G62 - Lenses - Installation manual (HTML)

Available lenses

Order No	Description	Throw Ratio	Image
R9832781 R9802300	G lens - Short Throw (includes lens ring for G60-W series)	0.65 - 0.75 : 1 (WUXGA)
R9801840	G lens - Short Throw (includes lens ring for G60-W series)	0.75 - 0.95 : 1 (WUXGA)
R9832755	G lens - Wide zoom	0.95 - 1.22 : 1 (WUXGA)
R9801784	G lens - Standard	1.22 - 1.52 : 1 (WUXGA)
R9832756	G lens - Long Zoom	1.52 - 2.92 : 1 (WUXGA)
R9832778	G lens - Ultra Long Zoom	2.90 - 5.50 : 1 (WUXGA)
R9801785 R98017851	G lens - Ultra Short Throw (This lens has special installation instructions. See chapter“G lens (0.36 : 1) UST”)	0.36 : 1 (WUXGA)

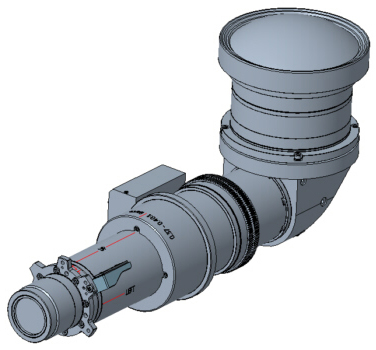

R9801830 ^[3]	G lens - Ultra Short Throw 90° (This lens has special installation instructions. See chapter “G lens (0.37 - 0.4 : 1) UST 90°”)	0.37 - 0.4 : 1 (WUXGA)

Lens specification table

Projection Lens			R98017851	R9832755		R9801784		R9832756		R9832778		R9801840
Projection Lens			Ultra Short Throw	Wide Zoom		Standard		Long Zoom		Ultra Long Zoom		Short Throw
Throw Ratio			0.36 (120")	0.95-1.22		1.22-1.52		1.52-2.92		2.90-5.50		0.75-0.95
Zoom Ratio			NA	1.28X		1.25X		1.9X		1.9X		1.26X
Throw Distance			0.96~3.01m	1.01~7.98m		1.30~9.96m		1.61~19.00m		3.18~34.77m		0.79~6.21m
Screen size			Projection distance (m)
Throw Ratio			0.361 (120")	0.95	1.22	1.22	1.53	1.52	2.92	2.9	5.5	0.75	0.95
Diagonal (inch)	Height (m)	Width (m)	(m)	Min (m)	Max (m)	Min (m)	Max (m)	Min (m)	Max (m)	Min (m)	Max (m)	Min (m)	Max (m)
50	0.67	1.08	NA	1.01	1.31	1.29	1.62	1.61	3.12	3.18	5.89	0.79	1.01
60	0.81	1.29	NA	1.22	1.57	1.56	1.95	1.94	3.76	3.78	7.05	0.96	1.22
70	0.94	1.51	NA	1.43	1.84	1.82	2.29	2.27	4.39	4.39	8.20	1.12	1.43
80	1.08	1.72	NA	1.63	2.11	2.09	2.62	2.60	5.03	5.00	9.36	1.28	1.64
90	1.21	1.94	NA	1.84	2.38	2.35	2.95	2.94	5.66	5.61	10.51	1.45	1.85
100	1.35	2.15	NA	2.05	2.64	2.62	3.28	3.27	6.30	6.21	11.67	1.61	2.05
110	1.48	2.37	NA	2.26	2.91	2.89	3.62	3.60	6.93	6.82	12.82	1.78	2.26
120	1.62	2.58	0.96	2.47	3.18	3.15	3.95	3.94	7.57	7.43	13.98	1.94	2.47
130	1.75	2.80	1.04	2.67	3.44	3.42	4.28	4.27	8.20	8.04	15.13	2.10	2.68
140	1.88	3.02	1.11	2.88	3.71	3.69	4.61	4.60	8.84	8.65	16.29	2.27	2.89
150	2.02	3.23	1.18	3.09	3.98	3.95	4.95	4.94	9.47	9.25	17.44	2.43	3.09
160	2.15	3.45	1.26	3.30	4.24	4.22	5.28	5.27	10.11	9.86	18.60	2.60	3.30
170	2.29	3.66	1.33	3.51	4.51	4.48	5.61	5.60	10.74	10.47	19.75	2.76	3.51
180	2.42	3.88	1.40	3.72	4.78	4.75	5.94	5.93	11.38	11.08	20.91	2.92	3.72
190	2.56	4.09	1.48	3.92	5.05	5.02	6.27	6.27	12.01	11.69	22.06	3.09	3.93
200	2.69	4.31	1.55	4.13	5.31	5.28	6.61	6.60	12.65	12.29	23.22	3.25	4.13
250	3.37	5.38	1.91	5.17	6.65	6.61	8.27	8.27	15.82	15.33	28.99	4.07	5.17
300	4.04	6.46	2.28	6.21	7.98	7.95	9.93	9.93	19.00	18.37	34.77	4.89	6.21
350	4.71	7.54	2.65	NA
400	5.38	8.62	3.01	NA

[3] This lens is sold as a package containing lens, lens support and safety cable (see Barco website for ordering information)
