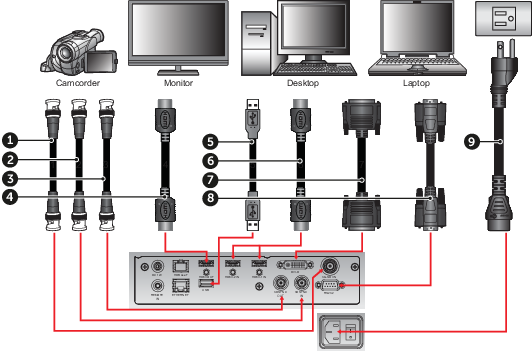

Wiring diagram
- 1
- 3G-SDI cable
- 2
- 3D Sync cable
- 3
- 3D Emitter cable
- 4
- HDMI cable
- 5
- USB cable
- 6
- HDMI cable
- 7
- DVI cable
- 8
- RS232 cable
- 9
- Power cord
Notes on wiring diagram:
- The diagram shows the cables/connectors that may be used to connect to various devices.
- Due to the difference in applications for each country, the accessories required in some regions may be different from those shown.
- This diagram is for illustrative purposes only, and does NOT indicate that these accessories are supplied with the projector.
