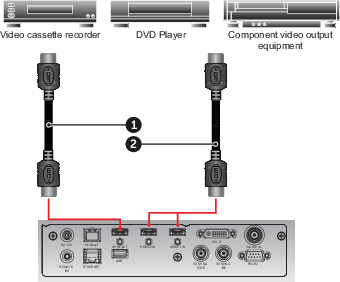

Wiring diagram

Notes on wiring diagram:

• The diagram shows the cables/connectors that may be used to connect to various devices.
• Due to the difference in applications for each country, the accessories required in some regions may be different from those shown.
• This diagram is for illustrative purposes only, and does NOT indicate that these accessories are supplied with the projector.
