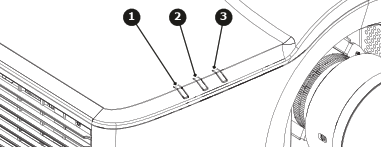

LED diagnostics
- 1
- Light LED
- 2
- Status LED
- 3
- AV Mute LED
| Message | Light LED (1) | Status LED (2) | AV Mute LED (3) | |||||
| Green | Orange | Red | Green | Orange | Red | Green | Orange | |
| Standby State | ||||||||
Power On Warm up | Flashing | |||||||
Power On & Laser diode on | Steady | Steady | Steady | |||||
Power Off Cooling down | Flashing | |||||||
AV mute is off Image displayed | Steady | Steady | Steady | |||||
AV mute is on Image is black | Steady | Steady | ||||||
| Projector communication | Steady | Flashing | Steady | |||||
| Firmware upgrade | Flashing | Flashing | ||||||
| Burn-in | Flashing | Flashing | ||||||
| Factory reset | Steady | Steady | ||||||
Error Over temperature | Steady | |||||||
Error Fan failure | Flashing | |||||||
Error Color Wheel failure | Flashing | |||||||
