About schedule
Schedule the project functions to operate automatically at the set time.
11.3 Schedule
Date and Time
Check or adjust the date and time for the projector.
Schedule Mode
Enable or disable the schedule function. If the projector is controlled via external devices or software, the Schedule Mode displays AP Mode, and the projector’s schedule functions are grayed out.
View Today
View the event list scheduled for today.
Monday to Sunday
Set up the schedule for days of a week. On the Schedule menu page, select a day and configure the schedule settings.
- Schedule Enable: Enable or disable the schedule function for the selected day.
Event 01-08 / Event 09-16: Select an event record number, and set up the schedule details.
- Time: Set the time for the event.
- Function: Set the function. The available functions are Power Settings, Input Source, Light Source Mode, and Shutter.
- Event: Select a function for the event, which operates automatically at the set time.
- Event Reset: Reset the event settings.

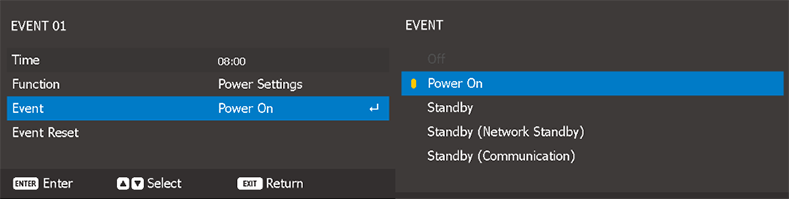

Image 11–4 Example of selecting an event for Monday: Power On More Events / Previous Events (Event 01-16): Swaps the menu between the first set of eight events (01–08) and the second set of eight events (09–16).

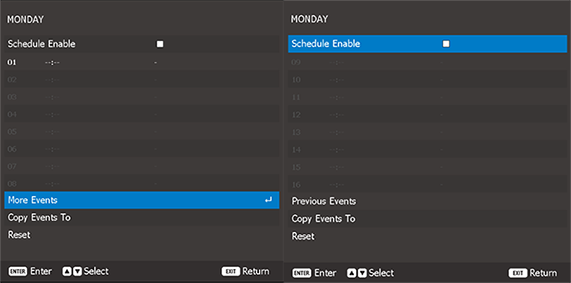

Image 11–5 Example of the two sets of eight events for Monda Copy Events To: Copy the events setup for the day to another day.

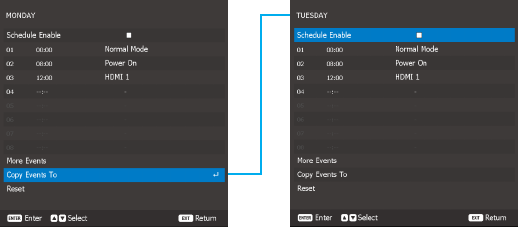

Image 11–6 Example of copying the events from Monday to Tuesday - Reset: Reset the schedule settings for the day.
Reset
Reset all of the schedule settings.
