8.10.6.6 Reset unit
About reset
There are four types of resets available:
- , reboots the unit.
- , returns all settings to their factory default value.
- , returns settings to their factory default value. The selected settings will remain unchanged.
- , puts the unit in standby mode. The power usage of the unit will decrease to 13.5W and the power button LED will turn solid red.
How to reset
Is there more than one unit in the system?
- If yes, click on the header of the desired unit (reference A or B) in the central work window. Go to next step.
- If no, go to next step.
Image 8–35 Example where the host unit is selected - A
- Host unit selection area
- B
- Client unit selection area
Select the desired reset method from the drop down (reference 8) in the right panel.

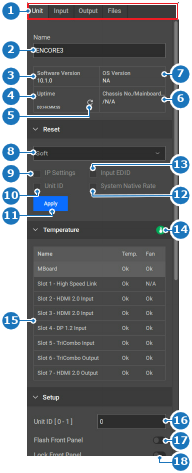

Image 8–36 - 1
- Category selection
- 2
- Unit name input field
- 3
- Running software version
- 4
- Last loaded uptime of the unit
- 5
- Refresh the unit uptime
- 6
- Unit serial number
- 7
- Operating system version
- 8
- Reset type drop down
- 9
- Keep IP settings toggle
- 10
- Keep Unit ID toggle
- 11
- Start reset button
- 12
- Keep system native rate toggle
- 13
- Keep input EDID toggle
- 14
- Unit health icon
- 15
- Temperature diagnostics table
- 16
- Unit ID input field
- 17
- Flash unit front panel toggle
- 18
- Lock unit front panel toggle
Is selected?
- If yes, check all settings that must be kept (reference 9, 10, 12 and 13, Image 8–36). and go to next step.
- If no, go to next step.
Click (reference 11, Image 8–36) to confirm.
Tip: If any modification to the IP address was made, then remote access to the unit will be lost after the reset.
