About Encore3

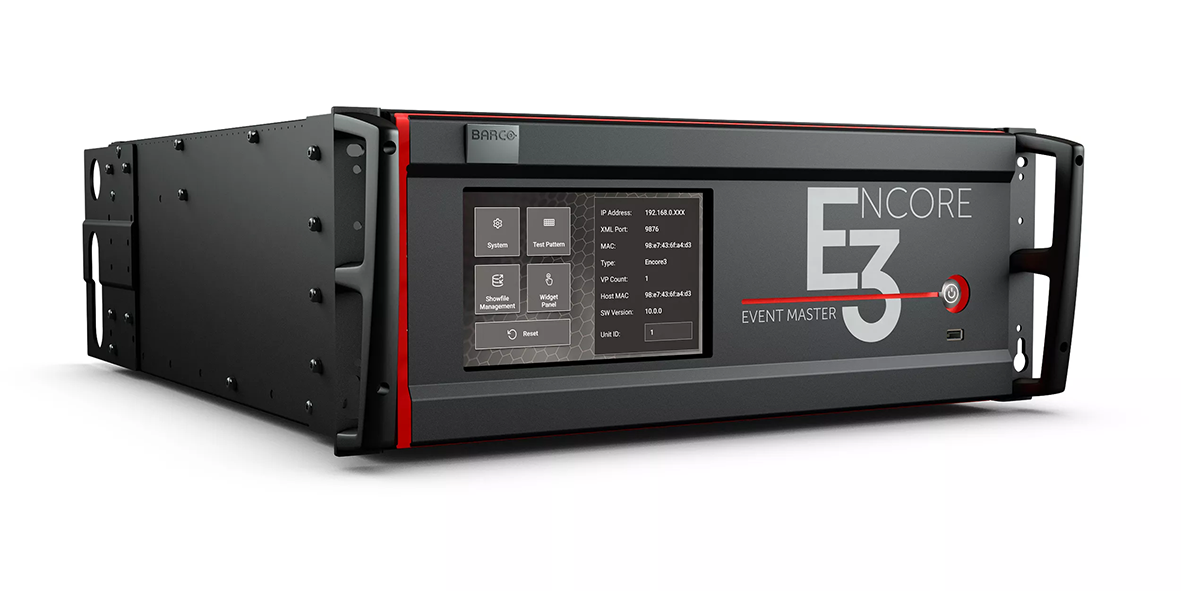

The Encore3 is a modular video processor allowing for multiple configurations. These configurations can be scaled or consist out of different combinations depending on the need, size and nature of the event or application.
2.3.1 Introduction
Encore3 components

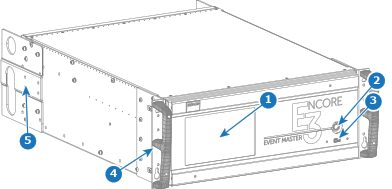

Front view:
- 1
- Touch panel
- 2
- Power button
- 3
- Front USB-A port
- 4
- Rack handles
- 5
- Rear connector protectors

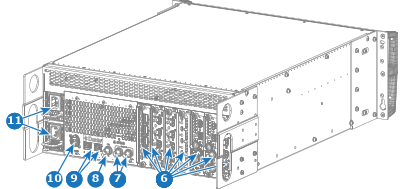

Rear view:
- 6
- Event Master card slots
- 7
- Genlock connectors
- 8
- LTC connector
- 9
- Dante audio™ connectors
- 10
- Control connector
- 11
- Power supplies
