Overview

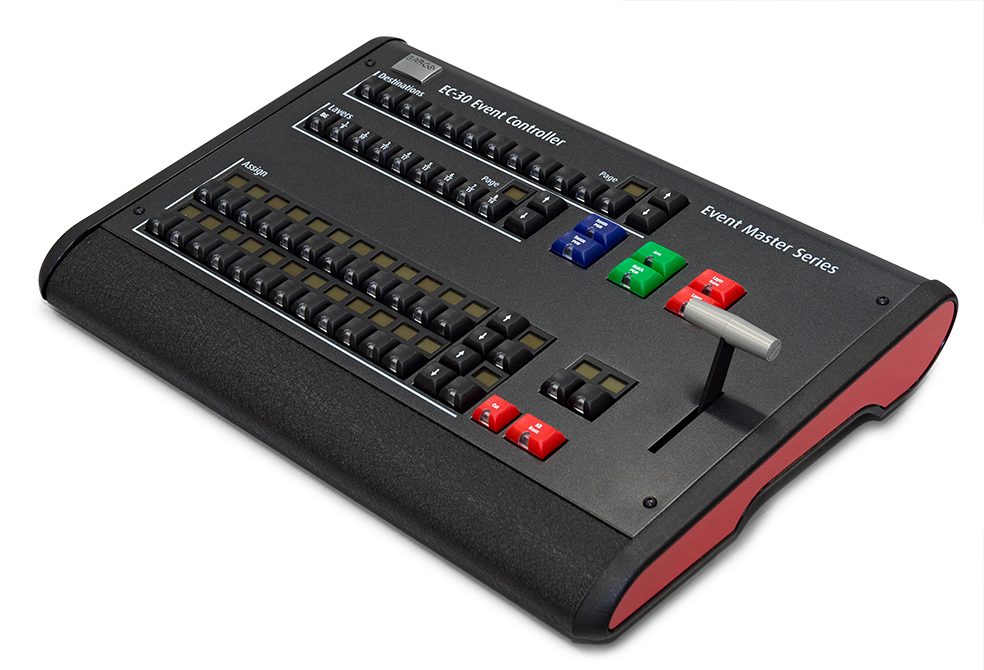

The EC-30 controller is a compact controller providing programmable buttons and a T-bar.
2.5.2 EC-30
Components

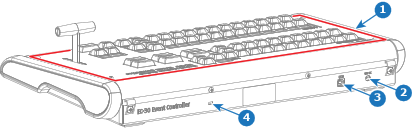

Back view:
- 1
- Button area
- 2
- Power port
- 3
- USB-B port
- 4
- Kensington™ lock
Button layout
Tip: For more information about the functionality of each button, see “Using Event Master controllers”.
- 1
- T-bar
- 2
- Custom buttons
- 3
- Transition buttons
- 4
- 2 rows assign buttons
- 5
- Layer buttons
- 6
- Screen destination buttons
