Overview

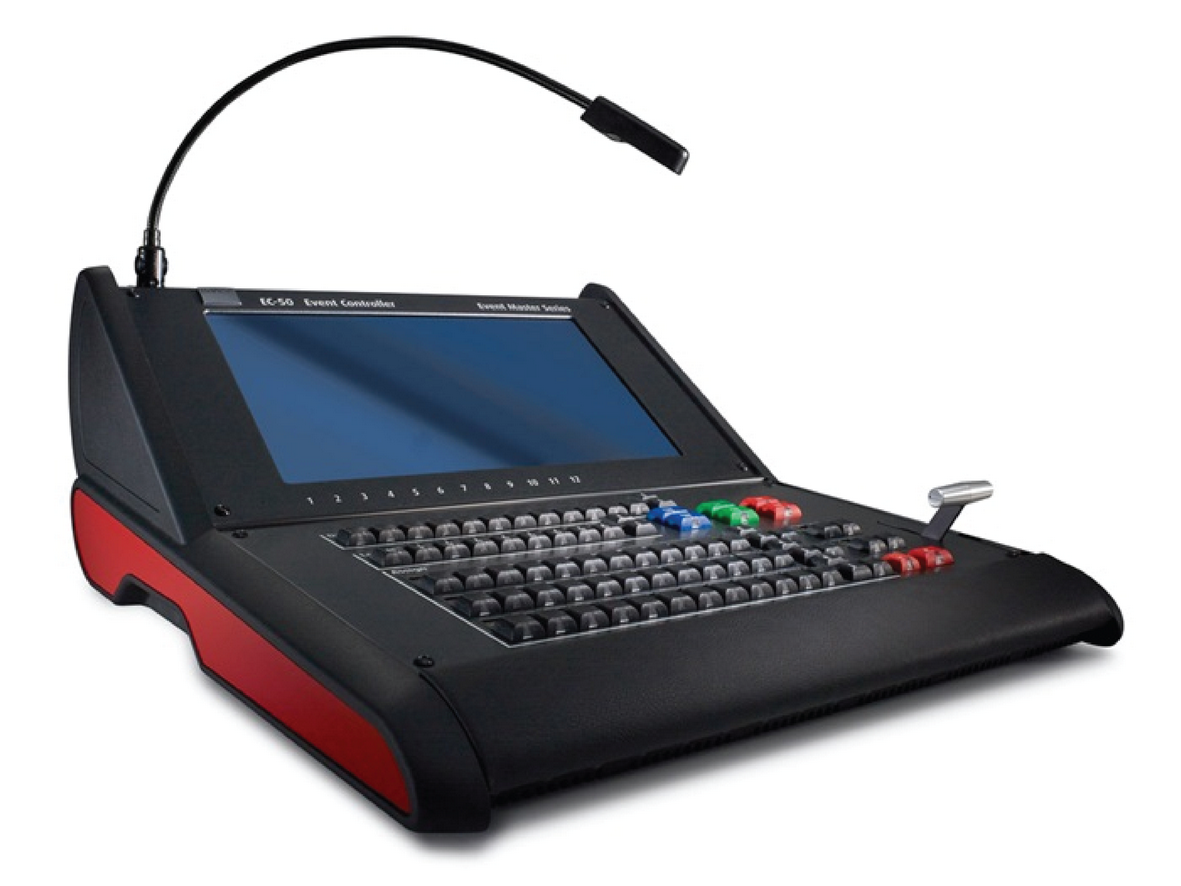

The EC-50 controller is a controller providing programmable buttons, a T-bar and a built-in touch display.
2.5.3 EC-50
Components
Front view:
- 1
- Flexible light
- 2
- Touch screen
- 3
- Button area
- 4
- Arm rest
Back view:
- 5
- Power switch
- 6
- Power port
- 7
- USB-B port
- 8
- DVI-D in port
- 9
- USB-A ports
- 10
- Expansion slot
- 11
- Kensington™ lock
Button layout
Tip: For more information about the functionality of each button, see “Using Event Master controllers”.
- 1
- T-bar
- 2
- Custom buttons
- 3
- Transition buttons
- 4
- 3 rows assign buttons
- 5
- Layer buttons
- 6
- Screen destination buttons
