8.3 Pulse Quad Combo input Mk III

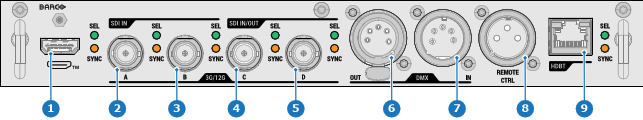

Front panel Quad Combo Input Mk III

HDMI™

Supports HDMI 2.1 features (FRL up to 4 lanes 12G)

SDI ports – How does it work?

The SDI port A, B, C and D supports 3G, 6G and 12G input signals.
The SDI port C functions as a loop-through output for any signal placed on port A.
The SDI port D functions as a loop-through output for any signal placed on port B.

When connecting multiple projectors with the same signal, you can connect the signal as follows:

Connect the source signal to Input A or B of the first projector.
If the source signal is connected to input A, connect input/output C to the Input of the following projector.
If the source signal is connected to input B, connect input/output D to the Input of the following projector.
Continue in the same fashion until all projectors are connected.

DMX interface

DMX is used as communication bus between different devices in the light technic. Each device has an input and an output, so that the bus can be looped between the different devices. According the standard a five wire cable with XLR connector is used.

You can use the DMX input port to connect a DMX device (DMX console) to the projector. This way you can control the projector from that DMX device (console). The DMX output port can be connected with the next device in the loop.

DMX
Pin	Description
1	Earth
2	Cold
3	Hot
4	Return - (or not used)
5	Return + (or not used)

Note: Due to technical reasons, the DMX interface can only be used if the Pulse Quad Combo input Mk III is mounted in input slot L1.

DMX: DMX-512 Lighting protocol over RS-485 interface. Carries information of 512 channels from a lighting controller to lighting devices. Standardized by USITT.

HDBaseT input

Supports HDBaset 3.0 (up to 4k60 RGB 444).

The HDBaseT port does not supports network connectivity.

LED behavior

The SEL LED lights up GREEN: input is selected.
The SEL LED blinks GREEN: input/output is selected and configured as output.
The SYNC LED lights up ORANGE: valid input sync is detected.
The SYNC LED blinks ORANGE: Sync/signal is present, but not conform with input port standard.

Note: Non-conformity issues can be caused by older or low quality cables unable to handle the requested resolution, or connected signal converters manipulating the signal out of the supported video standards.

Note: For specifications about the supported inputs for SDI, HDMI, HDBaseT and DisplayPort 1.2 see chapter “Specifications”.
