Prerequisites

The device identification file(s) must be obtained, using either Pulse OSD or Pulse Prospector.

How to upload

1. In Insights Management Suite, browse to Device registration.

2. Upload the device identification file(s) to the device registration tab of Insights Management Suite using one of the following methods:

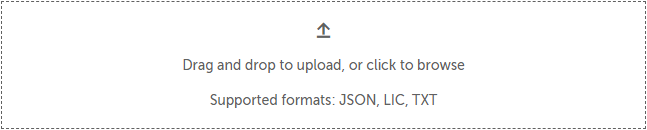

   • Drag and drop the .JSON file in the dotted line box with the text Upload Identification file.
   • Click on the Upload Identification file text and browse to the .JSON file, using the file picker window.


   Tip: Multiple files can be uploaded at the same time.



3. Select the desired location from the drop down menu after Location name.



   Tip: If the desired location is not present in the drop down, click on the + () to create a new one.



4. Click on Register now to register the device in the cloud.



5. Is the device connected to the internet?

   • If yes, no further actions required. Registration will be completed automatically.
   • If no, download the device registration file from Insights Management Suite. For more information, see “Downloading a device registration file”.


   Note: On Pulse 2.6 or older, the projector is not notified of the registration completion. For projectors running Pulse 2.6 or older, it is mandatory to download the device registration file and upload it to the projector manually.
