3.3.1 About

IP address
An IP address is a numeric address given to a device on a network. A generation four address (IPv4) is built up using four digits between ‘0’ - ‘255’, for example ‘192.168.0.50’. This allows different network devices to find each other on the network.
About system information

The about provides an overview about the version and drivers that are installed. When a connection with a ClickShare system is made, then information about the hardware is also displayed in the about.

Location

Options () > About

How to view

  1. Check the desired information in the details section (reference 1).

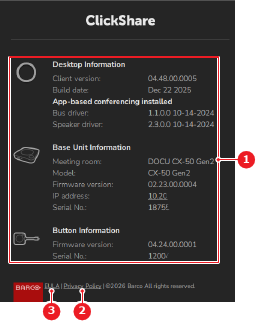

    Image 3–6
    1
    Details section
    2
    Privacy policy link
    3
    EULA link

  2. Is more information needed?

    • In case of the Base Unit configurator, click the IP address of the Base Unit in the details section (reference 1, Image 3–6). For more information about the configurator, see the installation manual of the Base Unit.
    • In case of the Privacy Policy, click the link (reference 2, Image 3–6) at the bottom.
    • In case of the EULA, click the link (reference 3, Image 3–6) at the bottom.

    The link opens in the default browser.
