2.2 Pairing the Button(s)

About the pairing

Button(s) must be paired with a Base Unit before they will work. An unpaired Button will not be able to share content nor connect to ClickShare.

Tip: It is not possible to pair a Button with multiple Base Units.

Pairing a Button to a different Base Unit will overwrite the link to the previous Base Unit.

Prerequisites

The Base Unit must be awake before a Button can be paired. For more information, see “Waking the Base Unit”.

How to pair

  1. Connect the Button to any free ‘USB-C’ port (reference 1 to 4) of the Base Unit.

    Note: The Hub Core, Hub Pro is only compatible with 5th gen Buttons. For more information about the Button, see “The ClickShare Button”.
    Tip: The front ‘USB-C’ port (reference 1) is recommended.

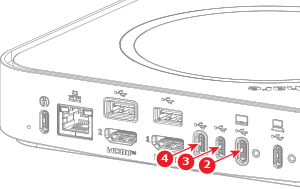

    Image 2–2
    Image 2–3 For Hub Core
    Image 2–4 For Hub Pro
  2. Wait until the LED ring of the Button turns solid green.

  3. Remove the Button from the Base Unit.

    The Button is ready to be used.
