2.2 The ClickShare Button

About the ClickShare Button

The ClickShare Button is a ‘USB’ powered wireless device. The Button consists out of two buttons. One which manages sharing content and the other opens the ClickShare App that is embedded into the Button or installed on the device. The embedded ClickShare App is called the “Button App”.

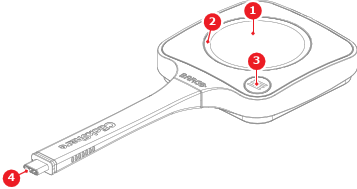

5th gen Button overview
Image 2–4
1
Share button
2
LED ring
3
ClickShare App button with LED
4
USB-C™ connector
Button functionality

There are two physical buttons on the Button. For more information on their functionality, see the following table:

ActionFunction
Press on the share buttonStart sharing
Press on the ClickShare App buttonPops up or minimizes the ClickShare App
Button LEDs

There is an LED ring around the share button and an LED in the ClickShare App button. The color and animation of the LEDs show the current state of the Button. For more information on the possible states, see the following tables:

LED share ring stateMeaning
White fillSetting up the connection
Steady whiteConnected and ready to be used
Fast spinning whiteNear connection timeout
Steady redSharing
Blinking redError
Steady greenButton pairing successful
LED ClickShare App stateMeaning
Steady whiteClickShare App ready to use or in use
OffClickShare App disabled or not allowed
