NT1.2

NT1.2

1.2 mm pixel pitch, high-res indoor LED display

NT1.2

1.2 mm pixel pitch, high-res indoor LED display

  • 1.2 mm pixel pitch LED solution
  • Superb color accuracy
  • Thin tiles for easier integration, maintenance, and better aesthetics
  • Smooth and efficient operations
  • Up to 5 years of dedicated service and support

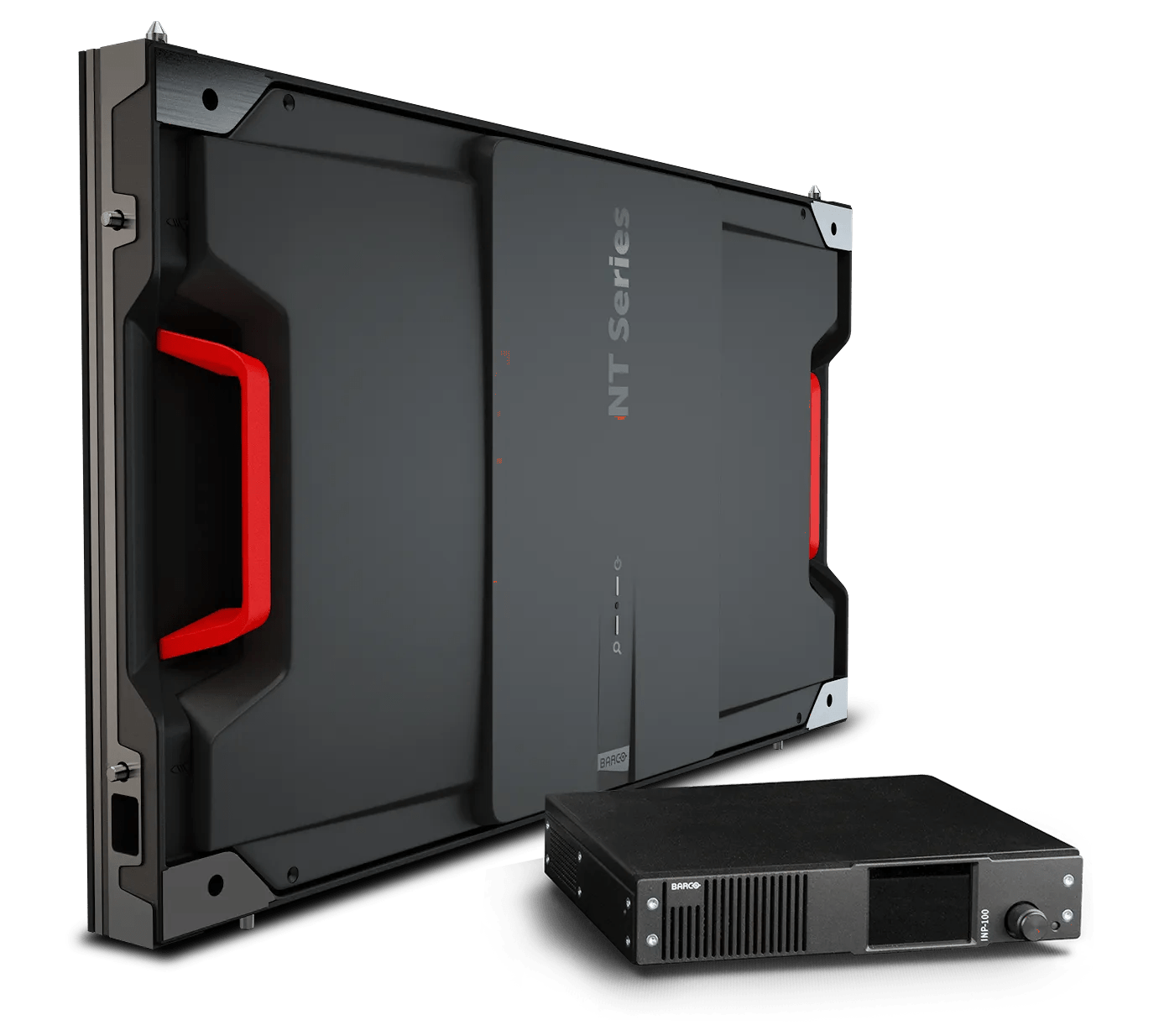

Running high-impact video walls has never been this easy. The LED NT series offers sharper images through Infinipix® Gen2 processing power, a thin tile that is therefore lighter, simplified mounting for easier maintenance, smarter connections for enhanced quality and operation, and good low-light performance.

Superb image quality

With no visual distortion, low latency and perfect syncing, applications from boardrooms and lobbies to control rooms and broadcast can now enjoy high-quality viewing for all types of content. This also requires perfect color accuracy at every level of brightness, which is maintained by Infinipix® Gen2. The embedded proprietary Smart CalibrationTM also ensures wide color gamut support for rich and true-to-life images.

Easy maintenance and serviceability

The thin tiles contribute to the product’s versatility and ease of installation. This lowers the wall’s footprint and broadens the possibilities for set-ups at different locations, enabling better integration into existing spaces. The accessibility from both front and back drastically improves the ease of maintenance. What's more, Barco's Video Wall Manager software automatically configures the different tiles, which greatly speeds up the installation process.

Specifications

Download spec sheet
LED tiles
Pixel pitch
1.25
Pixel per module
480x270 (HxV)
LED lifetime
100,000h (video - 50% brightness)
Brightness
>600 nit
Peak brightness
780 nit
Internal processing
23 bit
Color depth
16 bit (281 trillion colors)
Shaders
No
Control
Infinpix® Gen2
Refresh rate
3,840 Hz
3D
No
Frame rate
24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60
Hor. viewing angle
160° +/-5°
Vert. viewing angle
160° +/-5°
Brightness uniformity
>98%
Dimming
0-100%
Contrast
>5,000:1
Power consumption
642 W/m² 130 W/Tile(max)
214 W/m² 44 W/Tile (typ)
Heat dissipation
2,189 BTU/h/m² (max)
730 BTU/h/m² (typ)
Heat dissipation front/back
54%/46%
Operation power voltage
AC power: 100-240V 50/60Hz
Operational humidity
10 - 80%
Operational temperature
-10°C to +40°C / 14°F to 104°F
IP rating
IP30
Redundancy
Power: Optional
Data: signal loop redundancy / N + N redundancy optional
HDR
HLG / HDR10 supported
Concave curvature
Up to 5° inter tile (6.88m radius)
Convex curvature
N/a
Dimensions
(WxHxD) 600x337.5x39mm / 23.62"x13.29"x1.54"
Weight
6kg/tile
Serviceability
Full front & full back service
Cable management
No external cabling
Ergonomics
SteadyView™ driver algorithm to reduce eye fatigue
Certifications
CE, UL, FCC class A, CB, RoHS, WEEE, REACH
TAA Compliancy
Not available
Warranty
3 years
EssentialCare Service offering
5 years
