Uncompressed ultra-low latency video over IP in your PC

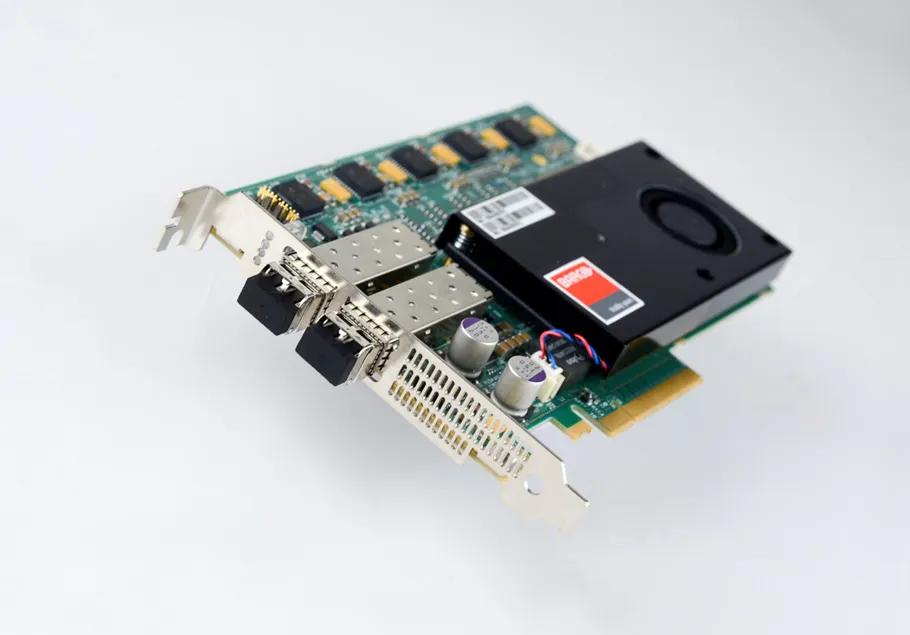

The MNA-180 PCie card has been designed to allow for easy and cost-optimized integration of the Nexxis audio and video IP streams into PC platforms. The Nexxis PCIe card avoids the need to install separate video frame grabber boards. This board can work as a decoder and an encoder at the same time. As a decoder, it brings the IP video directly to the PC memory without any additional conversion or compression. As an encoder it offers the possibility to stream out video from the PC directly to the Nexxis fiber network with minimal latency and optimal video quality. The same encoding and decoding capabilities are supported for audio as well. As for the standalone AV-to-IP adapters, the Nexxis MNA-140 PCIe is managed via the NMS Management Software. In addition, it comes with a DirectX API for integration in Windows PC applications.

The MNA-180 PCIe card is part of Barco’s Nexxis solution, which provides users with uncompromised networked visualization for the digital operating room and the cathlab. Nexxis adapters offer simplicity and flexibility in the OR while maintaining the highest possible performance standards and fitness for use in high-demanding medical environments.
