About software update

The firmware of a single Base Unit or of multiple Base Units can be updated with XMS (virtual) Edge. The update can be executed immediately or it can be scheduled.

The Base Unit firmware must be loaded on the XMS (virtual) Edge, prior the update. XMS (virtual) Edge may directly download a firmware from Barco site, or the firmware may be uploaded to XMS (virtual) Edge.

Before a firmware update can take place, the firmware must be available on the XMS (virtual) Edge. For more info, see “Firmwares”

Note: An update takes about 10 up to 20 minutes for a CSC-1, about 5 up to 10 minutes for a CSE-200, CSE-200+, CSE-800, C-5, C-10, CX-20, CX-30, CX-50, CX-50 Gen2, CB Core, CB Pro and 15 up to 30 minutes for a CSM-1.

How to update

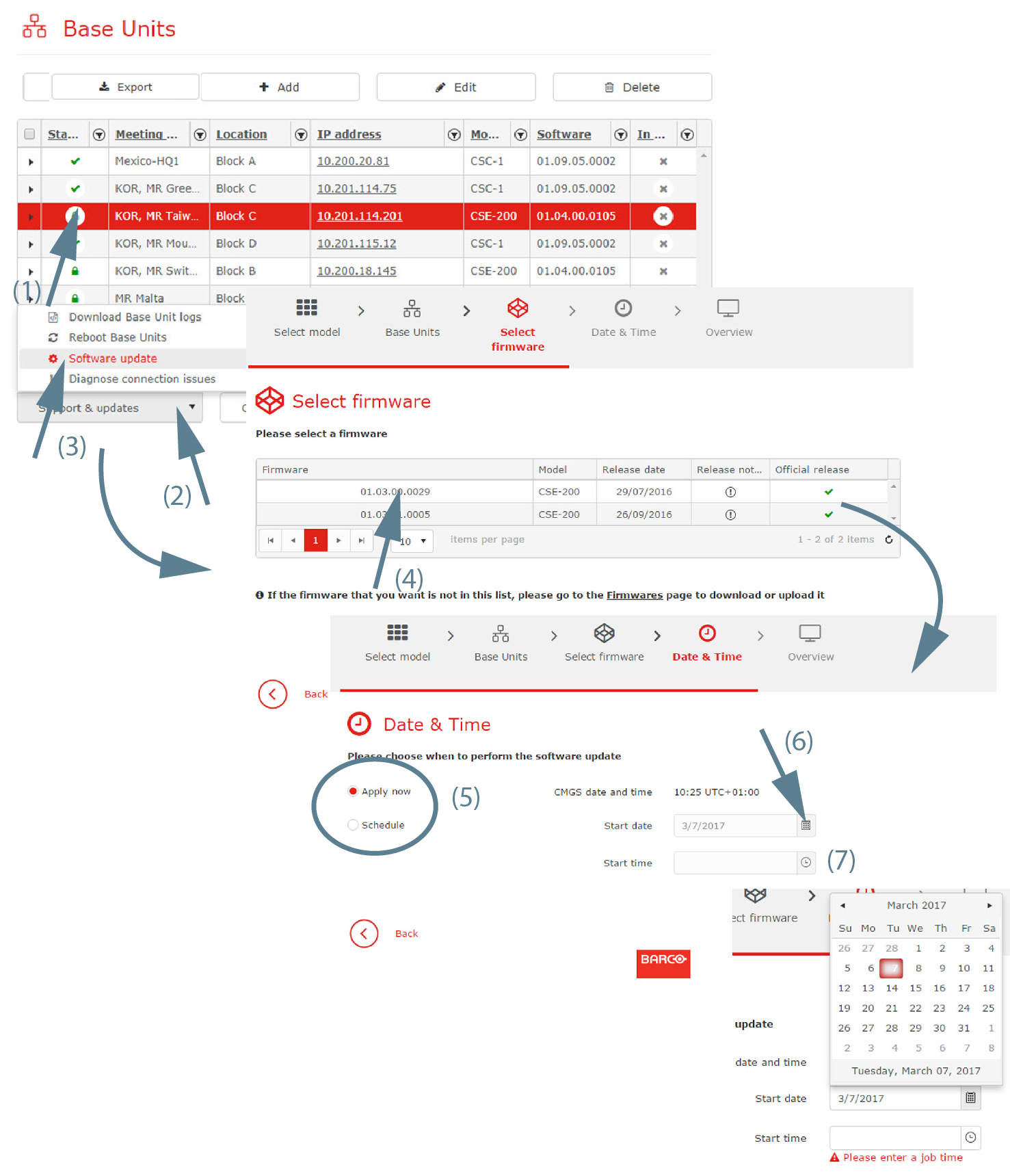

1. Select the Base Unit(s) to update (1). All the selected Base Units must be of the same type.



2. Click on the drop down box Support & Updates (2) and click Software Update (3).

   The Select firmware window opens.

   The possible updates are displayed. If the firmware that you want is not in the list, click on Firmwares to go to the firmware page to download or upload this version. See Download firmware.

3. Select the firmware version (4) and click Next to continue.

4. To apply the firmware immediately, check the radio button in front of Apply now (5).

   To schedule the update in the future, check the radio button in front of Schedule. To change the date, click on the calendar icon (6) and select the date (7). Enter the time (hh:mm) or click on the clock icon, then select a predefined time.

5. Click OK.

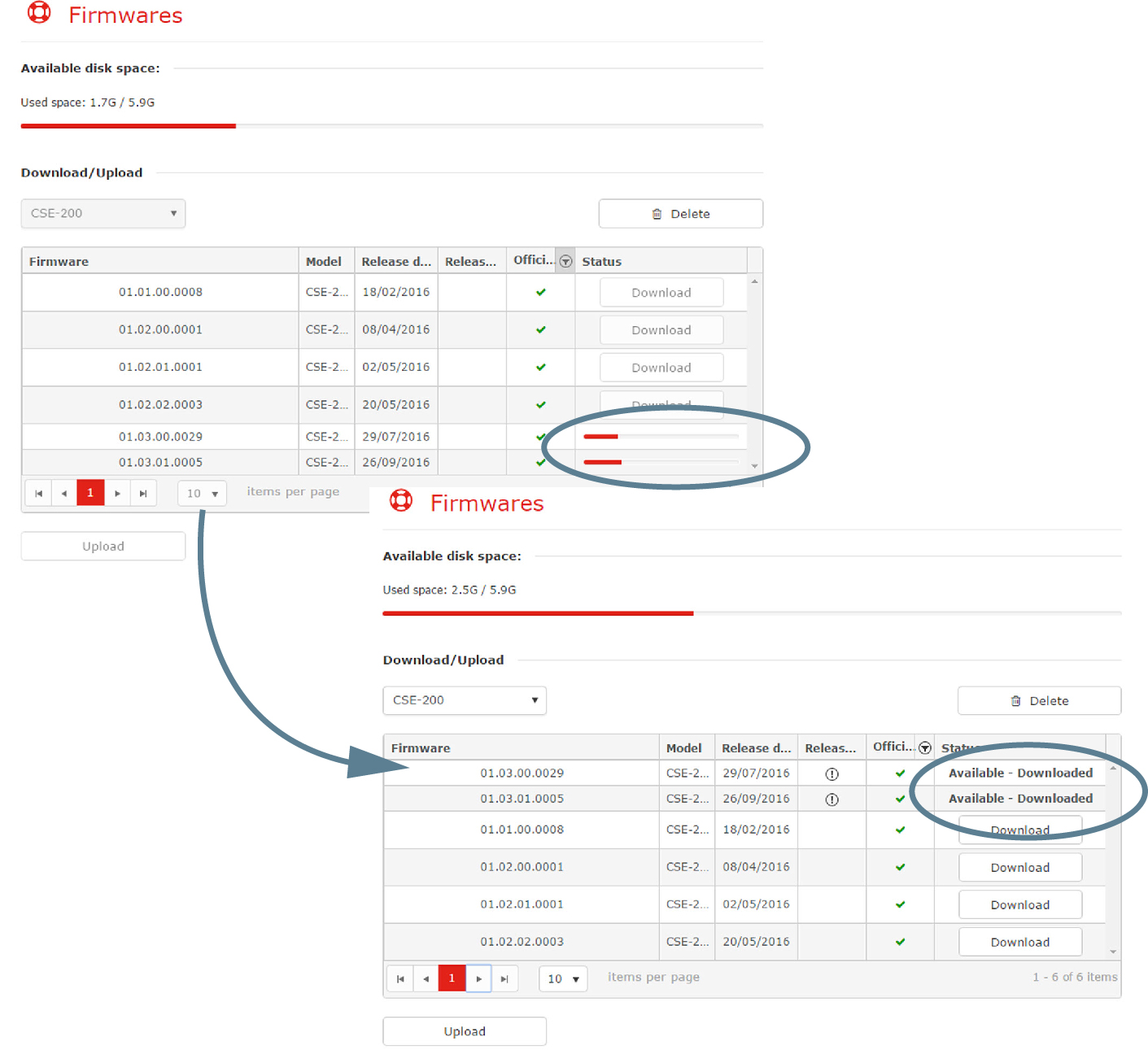

Download firmware

1. First select the desired device type from the drop down list before downloading or uploading a firmware.

   The possible firmware for that model are displayed.

2. On the firmware page, click on the download button next to the firmware you want to download.



   The download starts.
