5.3.3 Connecting over LAN

About LAN connection

Connecting the C-5, C-10 to the LAN, allows for the configuration and management of the Base Unit remotely.

How to connect

  1. Connect an “ethernet” cable from the LAN to the “ethernet” port at the back of the Base Unit. (reference 1)

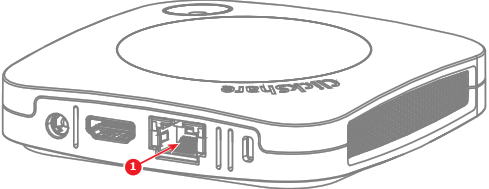

    Image 5–8 Location of the LAN connector
    1
    Connection for the LAN cable

  2. Connect the other end of the ‘ethernet’ cable to one of the following options:

    • To the network, the IP address is assigned to the Base Unit by the network.
    • Using a direct connnection, the default IP address is 192.168.1.23.

  3. Navigate to the IP address with a browser of choice.

    Note: Depending on the configuration of the browser, a security warning could be displayed. To prevent this warning in the future, see “HTTP encryption”.
  4. To initialize the configurator see “The ClickShare configuration wizard”
