The system is represented graphically in this part of the System configuration page. It is here that the user can select a system (or create a new one), or select a system element ( inputs, outputs, destinations …)
6.9 Configuration Menu > System diagram area
Description

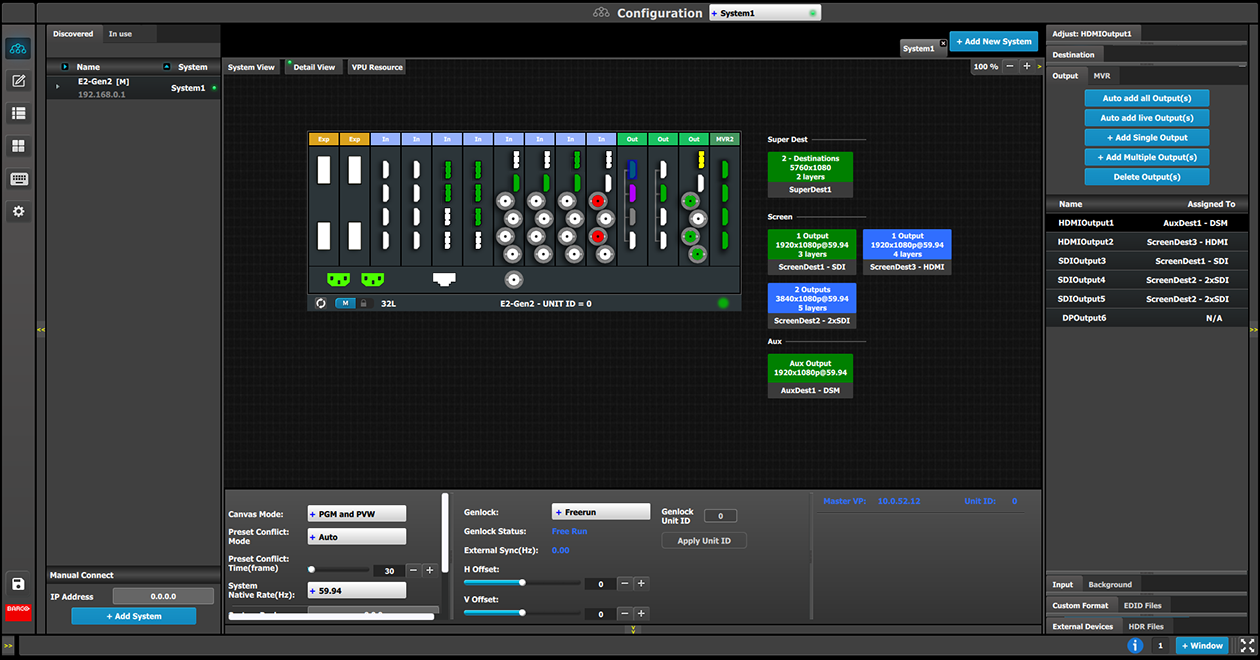

The diagram area graphically represents the devices and destinations that compose the system.
In this area, the rear panel of the selected system is represented graphically with the cards, and the connectors are color coded to indicate their status.
The color code is:
- White = Connector available to add and configure.
- Gray = Connector capacity set to NONE and is unavailable to add and configure.
Purple = Connector capacity set to SPLIT; and connector is unavailable to add and configure.

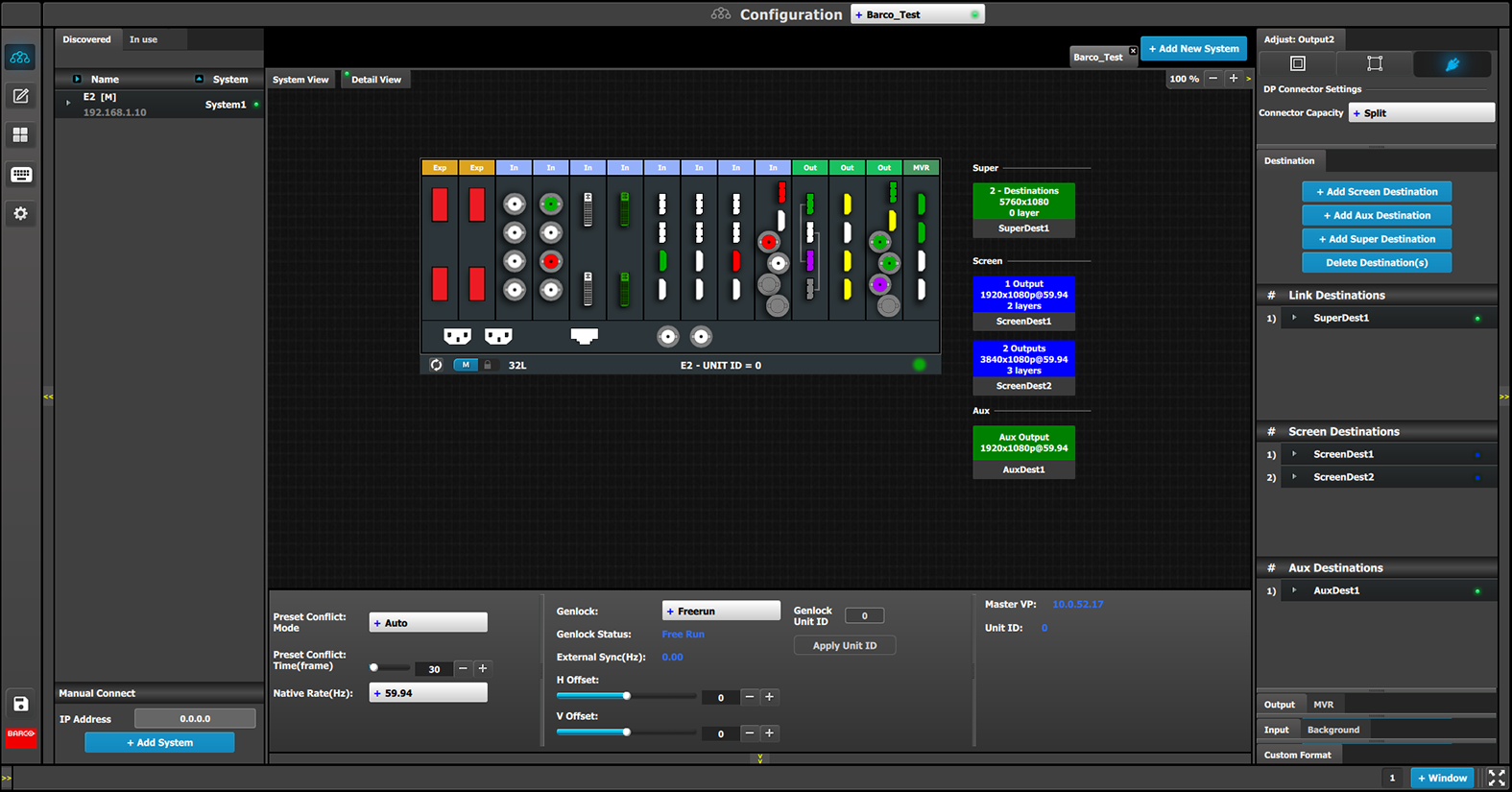

Note: Any connector on a Gen 2 output card (HDMI 2.0 Quad Output, DP 1.2 Quad Output, or 4K Tri-Combo Output card) may split to any other connector on the same Gen 2 output card. See Image 6–10.
- Red = Signal unavailable and connector configured into system.
- Yellow = Signal available.
- Green = Signal available and connector configured into system.
On the right hand side of the devices is a list of the created destinations (Screen and Auxiliary).
The tabs on the top allow access to the different systems connected to the EM GUI. The last tab allows the users to add a new system.
A set of zoom buttons allows the user to reduce or enlarge the view size. This functionality is very useful when the system is composed of more than one device.
How to create a new system
Click on the Add New System tab on the top.
A new empty tab is created.
- Drop a device on this system. Refer to the procedure to add a device in the section “Configuration Menu > Network resource area”.
Change the system name to avoid confusion when you control more than one system on the same Event Master Toolset Software.
Double click on the tab, the tab background changes to a dark blue color indicating that modifications to the name can be made.
How to remove a system
Click on the “X” button on the system tab.

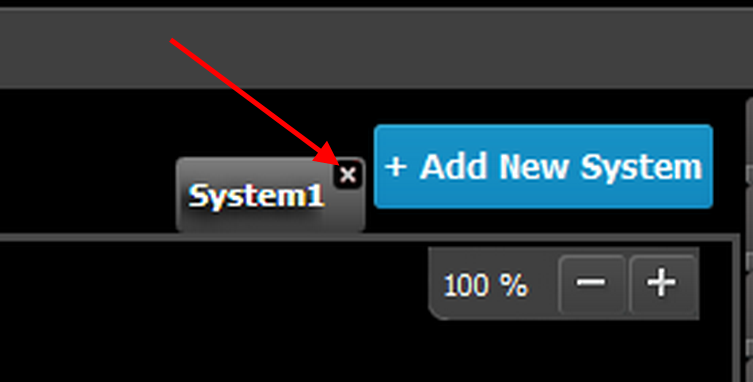

Image 6–11 A confirmation window appears.
Click on OK.
The tab is removed.
How to select a device in the system
Click on the area situated below the Event Master series processor graphic representation.

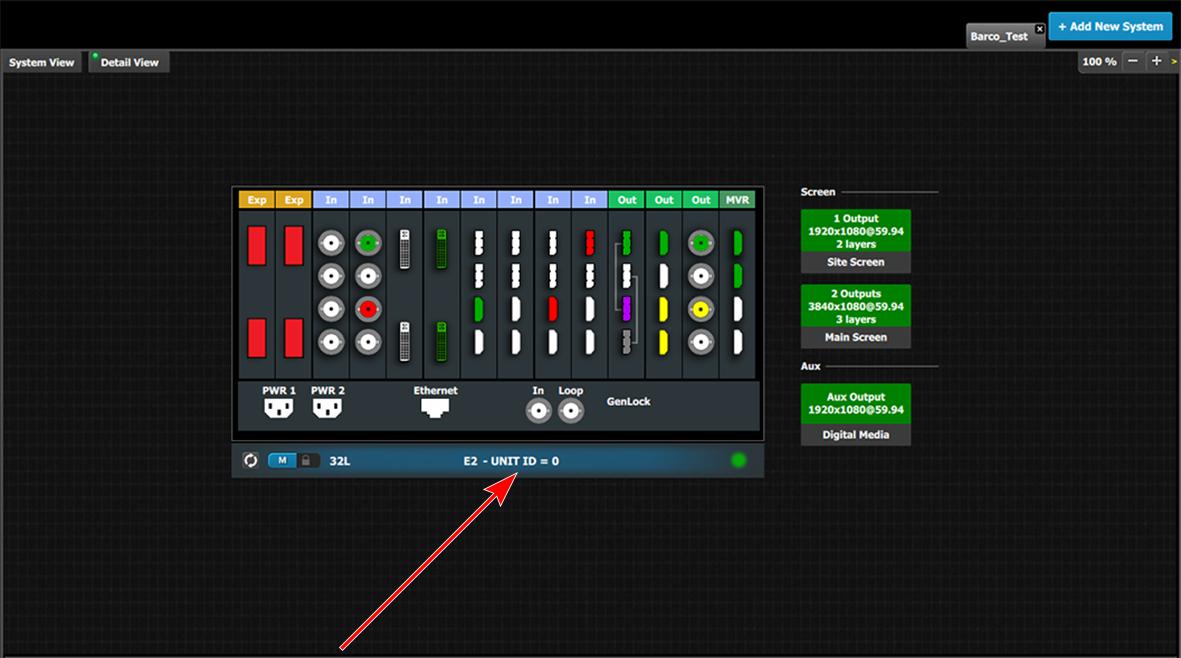

Image 6–12 Device selected The device is selected. The device is highlighted in blue.
How to select destination (Screen, Aux)
Click on a destination (e.g. Aux).

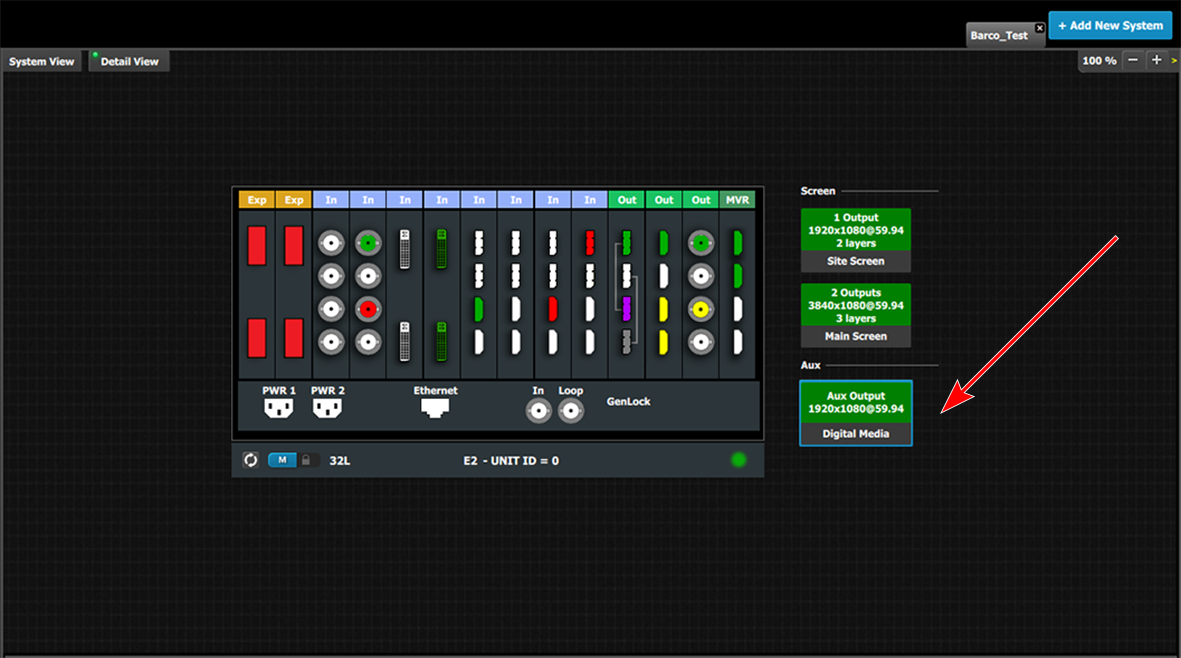

Image 6–13 Destination selected The destination is selected. The destination is highlighted in blue.
