UDX - Pulse Quad Combo input Mk I

8.4 Pulse Quad Combo input Mk I

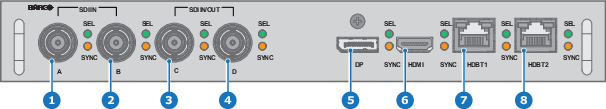

Overview Quad Combo input Mk I

Image 8–5
1
Quad SDI channel A: 3G input
2
Quad SDI channel B: 3G input
3
Quad SDI channel C: 3G input
4
Quad SDI channel D: 3G input
5
DisplayPort Input
6
HDMI input
7
HDBaseT input 1
8
HDBaseT input 2

LED behavior

The SYNC LED lit up ORANGE when valid input sync is detected.
The SEL LED lit up GREEN when the input is selected.

Note: For specifications about the supported inputs for SDI, HDMI, HDBaseT and DisplayPort 1.2 see chapter “Specifications”.

Remark concerning the Mk I and Mk II inputs boards

The Mk I input board miss functionality that has been implemented on the Mk II input board. These missing features include:

Loop-through functionality
12G SDI support
Network connectivity on HDBaseT inputs

The projector is now standard equipped with the Mk II input board. For details and specifications see chapter “Pulse Quad Combo input Mk II”.

Visual difference between the Mk I and Mk II input boards

There is one real visual aid to tell the two variants apart. There are visual markings added on the Mk II input board, marking which connector supports 12G and which only supports 3G.

Image 8–6 Quad Combo Input Mk I board, without markings above the SDI inputs

Image 8–7 Quad Combo Input Mk II board, with 3G/12G markings above the SDI inputs/outputs.
