4.10 Connecting an EC-30

Prerequisites

A computer with Event Master Toolset installed and a free ‘USB-A’ port is required to use the controller. For more information on how to install the Event Master Toolset, see “Event Master Toolset installation”.

About EC-30 power

The EC-30 has a dedicated power adapter that is delivered with the unit. This power adapter must be used to power the EC-30.

Image 4–18
1
Adapter plug
2
Power port
How to connect

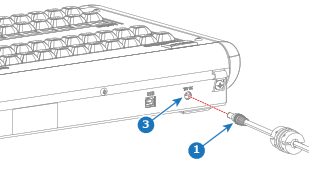

  1. Connect the adapter plug (reference 1) to the EC-30 power port (reference 3).

    Image 4–19

  2. Plug a power cable from the wall socket to the power port (reference 2).

    Image 4–20

    A light bounces back and forth among the ‘Destination’ buttons.

  3. Connect a ‘USB-B to USB-A’ cable from the ‘USB-B’ port of the EC-30 (reference 4) to a free ‘USB-A’ port of the computer.

    Image 4–21

    The bouncing light stops when the connection to the computer is made.

  4. Run the Event Master Toolset application on the connected computer.

  5. Is there a prompt to install the controller driver?

    • If yes, install the driver.
    • If no, no further actions required.
