8.10.7.3 Deleting destinations

Location
  1. Navigation side bar: Configuration
  2. Central work window: Detail View
  3. Right panel: Output > Screen or Auxiliary
How to delete

  1. Select the desired destinations using one of the following methods:

    • Click on the desired destinations (reference 3) in the central work area .
    • Click on the desired output connectors (reference 4) in the central work area.
    • Select the desired destinationsfrom the right panel under Screen (reference 28) or Aux (reference 39).
    Tip: Clicking a connector selects that connector, clicking the connector a second time deselects it.
    Tip: Hold CTRL or ⌘ to select multiple entries at once. If this does not work, enable the keyboard shortcuts in the settings. For more information, see “Keyboard shortcuts”.
    Tip: Selections from one method are automatically reflected in the other methods as well.
    Image 8–50
    1
    Unit details
    2
    Screen resource indicator
    3
    Used/available resource mapping overview
    4
    Event Master card connector status
    5
    Genlock connection status
    6
    LTC connection status (not yet supported)
    7
    Dante audio connection status (not yet supported)
    8
    Power connection status

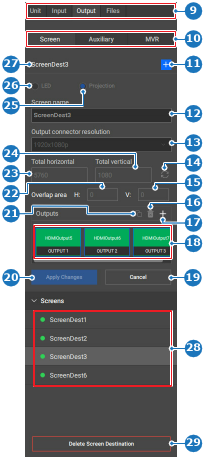

    Image 8–51
    9
    Category selection
    10
    Output selection
    11
    New screen destination button
    12
    Screen destination name input field
    13
    Output connector resolution drop down
    14
    Refresh horizontal and vertical pixels button
    15
    Vertical projection blend area
    16
    Delete selected output button
    17
    Create additional output button
    18
    Screen destination output overview
    19
    Cancel button
    20
    Confirmation button
    21
    Copy output button
    22
    Horizontal projection blend area
    23
    Screen destination horizontal pixels input field
    24
    Screen destination vertical pixels input field
    25
    Projector screen destination type
    26
    LED screen destination type
    27
    Current selection name
    28
    Screen destination list
    29
    Delete screen destination button

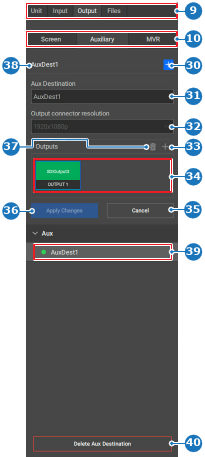

    Image 8–52
    9
    Category selection
    10
    Output selection
    30
    New aux destination button
    31
    Aux destination name input field
    32
    Output connector resolution drop down
    33
    Create additional output button
    34
    Aux destination output overview
    35
    Cancel button
    36
    Confirmation button
    37
    Delete selected output button
    38
    Current selection name
    39
    Aux destination list
    40
    Delete aux destination button

  2. Click Delete Screen Destination (reference 29, Image 8–51) or Delete Aux Destination (reference 40, Image 8–52) in the right panel.

    Confirmation is requested.

  3. Verify the correct outputs are selected and click Delete (reference 41).

    Image 8–53
    41
    Confirmation button
    42
    Cancel button

    The selected destinations are removed and the resources made available.

  4. Click the save icon () in the header.
