8.10.11 System view

Location
  1. Navigation side bar: Configuration
  2. Central work window: System View
About system view

System view will visualise how the physical link connection must be made between two Encore3 units. It also highlights which unit is the host and which one is the client. For more information, see “Linking multiple Encore3 units”.

For more information on how to linked system, see “Multi-unit systems”.

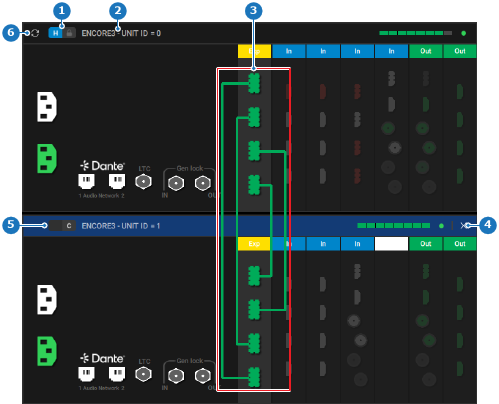

Image 8–74
1
Host unit label
2
Unit details label
3
Link cable connections
4
Separate button
5
Client unit label
6
Synchronize button
