8.12.10.6 Layer Z-order

Z-order
Z-order is an ordering method that determines whether an element appears in front or behind another element. This ordering makes it possible to position elements in a space without using additional processing power.
Location
  1. Navigation side bar: Programming
  2. Central work area: PREVIEW or PROGRAM
About Z-order

Z-order cannot be used for split layers nor output layers. These layers will always be arranged according to their layer number. If a layer must be behind or in front of another layer, then they must be assigned to another layer. For more information, see “Adding a source”.

How to change
  1. Click on the desired destination from the top panel or desired screen destination group from the bottom panel.

  2. Is the layer locked ()?

    • If yes, click the unlock icon () in the bottom panel (reference 34) and go to next step.
    • If no, go to next step.
    Note: If the layer is a split layer that is transitioned to program, then the layer must either be removed from program or program must be unlocked before it can be edited in preview.

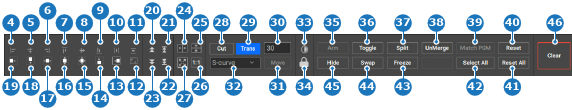

    Image 8–123
    4
    Left align selection
    5
    Vertical middle align selection
    6
    Right align selection
    7
    Top align selection
    8
    Horizontal middle align selection
    9
    Bottom align selection
    10
    Horizontal distribute selection
    11
    Vertical distribute selection
    12
    Make selections same size
    13
    Align selection with the right destination border
    14
    Align selection with the bottom destination border
    15
    Align selection with the center of the destination
    16
    Align selection with the vertical center of the destination
    17
    Align selection with the horizontal center of the destination
    18
    Align selection with the top destination border
    19
    Align selection with the left destination border
    20
    Move selection up in Z-order
    21
    Move selection to top in Z-order
    22
    Move selection to bottom in Z-order
    23
    Move selection down in Z-order
    24
    Size selection to fill horizontal
    25
    Size selection to fill vertical
    26
    Size selection to the source
    27
    Size selection to fill horizontal and vertical
    28
    Cut preview to program
    29
    Transition preview to program
    30
    Transition frames input field
    31
    Execute move animation button
    32
    Crossfade drop down
    33
    Toggle selected layer opacity in software
    34
    Lock or unlock selection
    35
    Arm button
    36
    Toggle selection between preview and program
    37
    Split or unsplit layer
    38
    Merge or unmerge layer
    39
    Match program to preview button
    40
    Reset modifications of selection
    41
    Reset modifications to all layers
    42
    Select all layers
    43
    Freeze selection
    44
    Swap layer modifications between preview and program
    45
    Hide or show selected layer from presets
    46
    Remove selections
  3. Select the desired layer in the central work area.
  4. Click on the Z-order buttons (reference 20 through 23, Image 8–123) from the bottom panel until the layer is in the desired Z-order position.
  5. Click the save icon () in the header.
