3.1.1 Models: C-5, C-10, CX-20, CX-30, C-5 Gen2, C-10 Gen2, CX-20 Gen2, CX-30 Gen2

Note: These Base Unit models are only compatible with a 4th gen Button. For more information, see “4th gen Button”.
Tip: All models listed in the title have the same appearance.

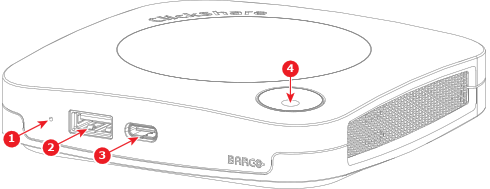

Components
Image 3–1
1
Power button
2
LED ring
Base Unit LED ring

There is an LED behind the power button of the Base Unit. The color and animation of the LED shows the current state of the Base Unit and connected peripherals. For more information on the possible states, see the following table:

LED statusMeaning
Static white

Base Unit idle

Button pairing completed

Blinking white

Base Unit starting

Button pairing in progress

Software update

Breathing whiteECO standby
Static redSharing
Blinking red

Error

Base Unit rebooting

OffDeep sleep
