Components

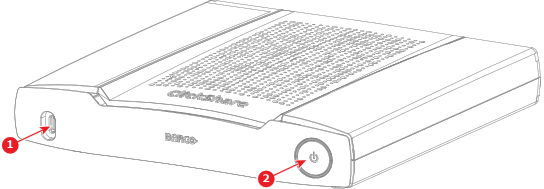

Front view:
- 1
- Front USB-C™ port
- 2
- Power button

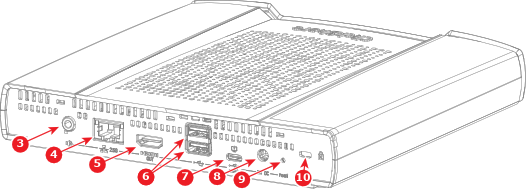

Back view:
- 3
- Audio output port
- 4
- LAN port
- 5
- HDMI™ out port
- 6
- USB-A ports
- 7
- Back USB-C™ port
- 8
- Power adapter port
- 9
- Reset button
- 10
- Kensington™ lock
2.1.3 CX-50 Gen2

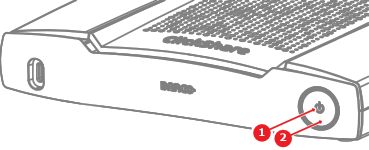

LED ring
There is an LED behind the standby button of the Base Unit. The color and animation of the LED shows the current state of the Base Unit and its peripherals. For more information on the possible states, see the following table:
| LED status | Meaning |
| Static white | Idle Pairing completed |
| Blinking white | Booting Pairing in progress Software update |
| Breathing white | ECO standby |
| Static red | Sharing |
| Blinking red | Error Rebooting |
| Off | Deep sleep |
