2.1.4 CX-M

Wi-Fi
Wireless fidelity (Wi-Fi) is a wireless network that is sent out by a Wi-Fi capable network device. Connection to the Wi-Fi network is possible as long as the device is within range of the Wi-Fi capable network devices making up the network.
Note: Only available in China.
Note: This Base Unit is only compatible with a 4th gen Button. For more information, see “4th gen Button”.
About the CX-M

The CX-M must be inserted into a supported display before it can function. When the CX-M is inserted, only the front view with the Wi-Fi antennae of the unit is visible. No LED ring is available on the CX-M. Refer to the display manual for more information on the state.

CX-M power saving

The CX-M follows the power state of the display. The power button of the display also controls the CX-M power state.

Components

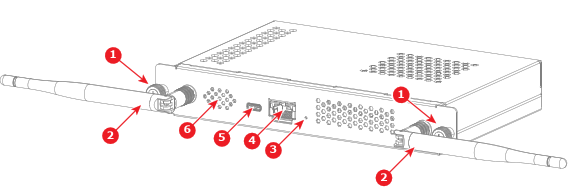

Front view:

Image 2–7
1
Mounting screws
2
Wi-Fi antennae
3
Reset button
4
LAN port
5
USB-C™ port
6
Ultrasound speaker

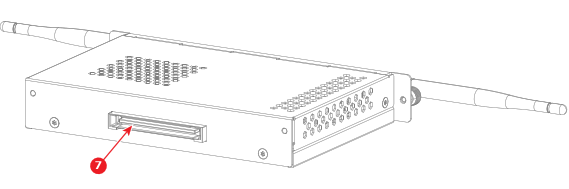

Back view:

Image 2–8
7
80-pin display connector
