5.4.2 Installing the USB-C Extension over CAT on a flat surface

Transmitter and receiver

The installation procedure is the same for the receiver and the transmitter.

Prerequisites

Determine the location of the USB-C Extension over CAT transmitter and receiver. For more information, see “Signal direction”.

Required parts

USB-C Extension over CAT kit

How to install

  1. Place the USB-C Extension over CAT on the desired location as illustrated.

    Note: Ensure all four rubber feet (reference 1) make solid contact with the surface.

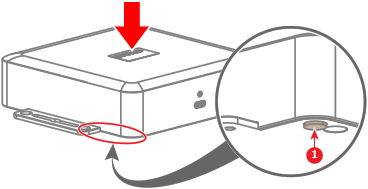

    Image 5–43

  2. Connect the cables to the USB-C Extension over CAT device.
