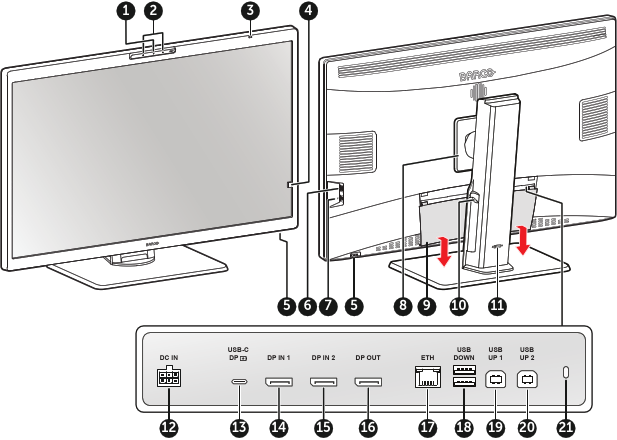

Product overview

1. Camera and status LED

   • Off: Not active
   • Blinking: Starting up
   • Steady: Active
2. Microphones

3. Power status LED

   • Off: Display not powered (mains cable unplugged), or display is in normal operation
   • Fast blinking: Display is in suspend mode
   • Slow blinking: Display is in standby mode
   • Steady: Display is in hibernate mode (see “Hibernate” )
   • Heartbeat: Display manually switched off via the jog dial

4. Front sensor

   CAUTION: To avoid permanent damage to the product, never use the front sensor to hold a paper, radiological film or any other object.

5. Jog dial

   • Press: Switch on the display, activate shortcut bar, go into (sub)menus, confirm adjustments and selections
   • Turn left or right: Switch on the display, activate shortcut bar, scroll through (sub)menus, change values, make selections
   • Press and hold for approximately 3 seconds: Switch off the display while no OSD menu is on the screen
6. USB DOWN (USB-A 2.0 downstream)
7. USB-C (USB-C 2.0, 7.5W Power Delivery)
8. VESA mount cover
9. Connector cover
10. Cable routing channels
11. Stand locking mechanism
12. DC power input
13. USB-C DP (DisplayPort Alt Mode, USB-C 3.2, 75W Power Delivery)
14. DP IN 1 (DisplayPort 1.4)
15. DP IN 2 (DisplayPort 1.4)
16. DP OUT (DisplayPort 1.4, MST)
17. ETH (RJ-45 1Gb Ethernet)
18. USB DOWN (USB-A 2.0 downstream)
19. USB UP 1 (USB-B 2.0 upstream)
20. USB UP 2 (USB-B 2.0 upstream)
21. Kensington security lock

Display position adjustment

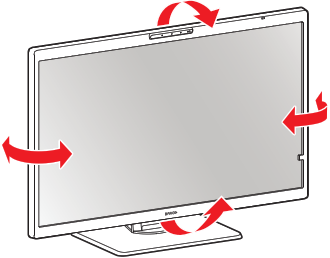

After unpacking, you can safely tilt and swivel the display to your preferred position.

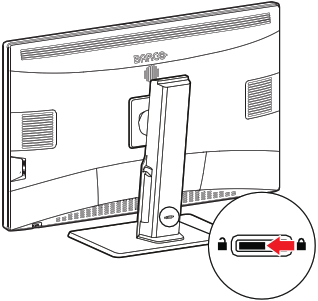

To adjust the height of the display, first move the slider at the back of the stand to the unlock position. Then you can raise or lower the display as desired.

Note: The height can be locked only in the lowest position, even though the slider at the back of the stand can be moved to the lock position at any height of the display.
