The ClickShare Hub Core and Hub Pro Base Units have an LED ring around the standby button that provides clear visual feedback using color and animation. It indicates the Base Unit’s operational status, including power, active content sharing, button pairing, software updates, and power-saving modes. This intuitive signaling helps users quickly understand the Base Unit’s status.
LED ring around the standby button

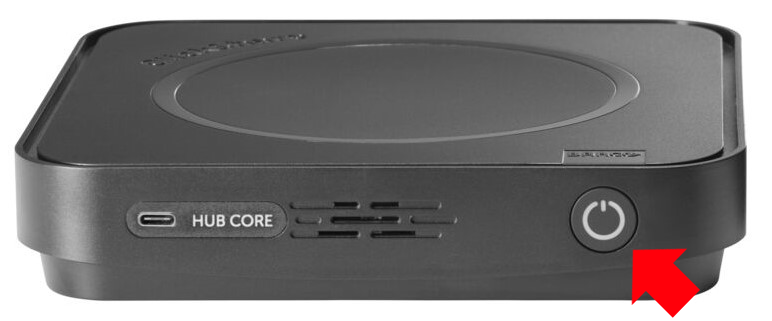

Hub Core

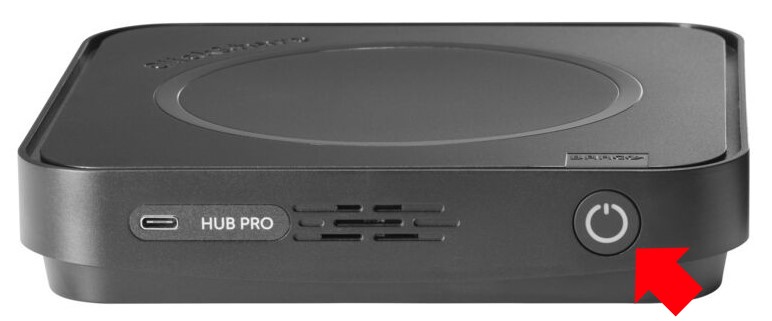

Hub Pro
Each LED color and animation corresponds to a specific state:
| Operational Status | Scenario | LED Status | Description |
|---|---|---|---|
| Power & Boot | No Power | No light | Base Unit is powered off |
| Booting | Blinking white light | Base Unit is starting up | |
| Fully Booted | Static white light | Base Unit is ready | |
| Boot Error | Blinking red light | Error during boot | |
| Sharing & Idle | Idle (no sharing) | Static white light | Base Unit is on, no content shared |
| Content Sharing | Static red light | Active sharing in progress | |
| Error State | Blinking red light | General error condition | |
| Button Pairing1 | Pairing in Progress | Blinking white light | Button is pairing with Base Unit |
| Pairing Successful | Static white light | Button successfully paired | |
| Pairing Error | Blinking red light | Error during pairing | |
| Software Update | Update in Progress | Blinking white light | Update is being installed |
| Update Completed | Static white light | Update finished | |
| Update Error | Blinking red light | Error during update | |
| Power Modes | Eco Mode | Fading white light | Energy-saving mode |
| Deep Sleep | No light | Base Unit is in deep sleep |
1 Button Pairing: Button connected to a USB-C port of the Base Unit.
