Overview
The 5th gen ClickShare Buttons (used with the ClickShare Hub Core and Hub Pro) have an LED ring that shows their current status using different colors and animations. This article helps users understand what each LED signal means, making it easier to identify the Button’s condition quickly.
Button LED Status

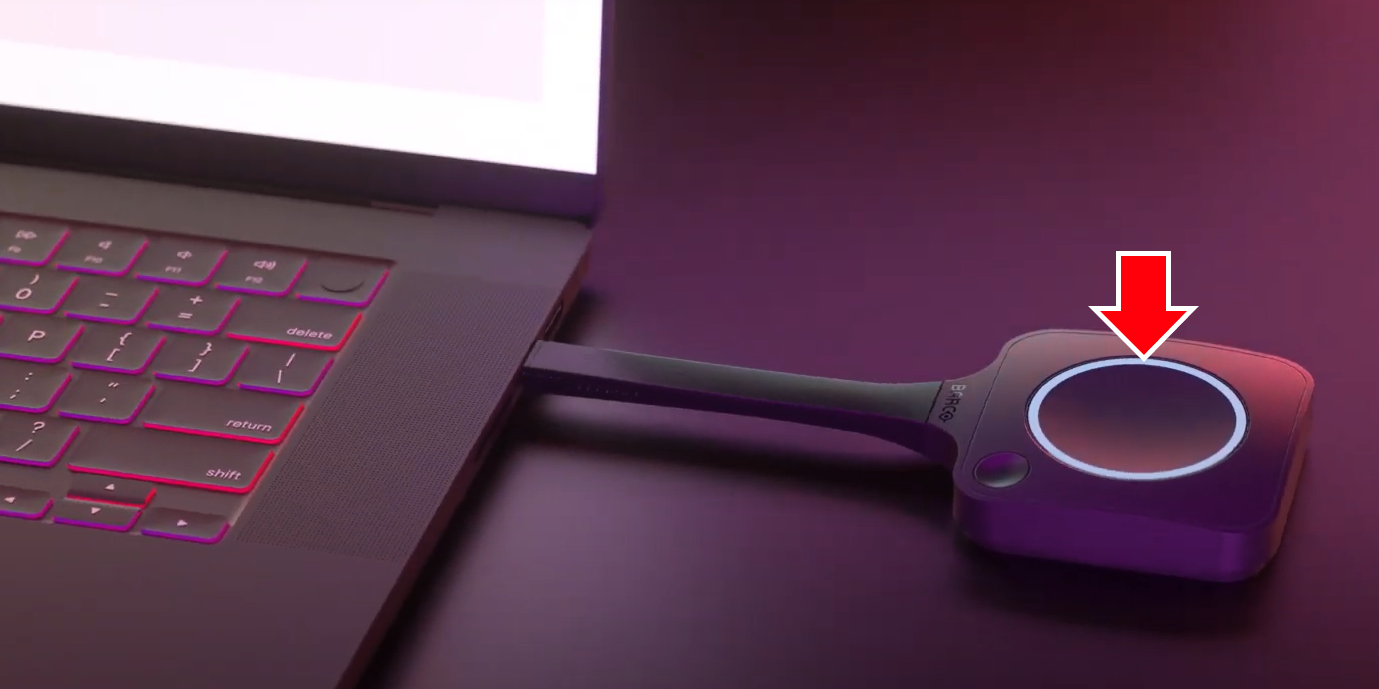

Example: Button plugged into a laptop and initializing the connection
| Button Connection | Scenario | LED Status | Description |
|---|---|---|---|
| Connected to Laptop/PC | Initializing connection | White fill | Button is setting up the connection |
| Connection successfully established | Steady white | Connected and ready for use (content sharing) | |
| Connection failed | Blinking white | Unable to establish connection | |
| Connection in progress | Fast spinning white | Device busy | |
| Device processing | |||
| Content sharing in progress | Steady red | Active sharing session | |
| Error state | Blinking red | Operational error | |
| Connected to Base Unit | Pairing successful | Steady green | Button paired with Base Unit |
| Pairing failed1 | Blinking red | Error during pairing process |
1 Button Pairing: If pairing fails, the Base Unit's LED will indicate the error by a blinking red light.
