Prerequisites
A ‘USB-C’ cable must be connected to the Control Panel. For more information, see “Connecting the USB cable”.
5.2.5 Securing the Control Panel to the table (low-angle view)
Required tools
Phillips screwdriver PH2
Required parts
- 2x M4x55 screws
- 2x washer
- 2x nut
- 2x M3x12 screws
- L-shape plate
How to secure
Foresee two holes spaced 34 mm apart at the desired location.
Image 5–13 Install the L-shape plate (reference A) using two M4 screws (reference 1), two washers (reference 2) and two nuts (reference 3) in the prepared holes. Use a PH2 Phillips screwdriver.

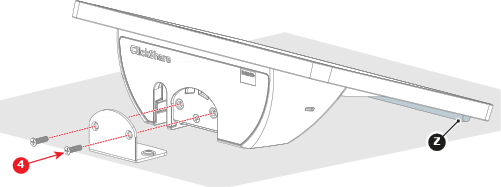

Image 5–14 Install the Control Panel as illustrated using two M3 screws (reference 4). Use a PH2 Phillips screwdriver.
Note: Ensure the rubber strip (Z) makes contact with the surface.
Image 5–15 - Connect the Control Panel to the Base Unit. For more information, see “Control Panel connection”.
