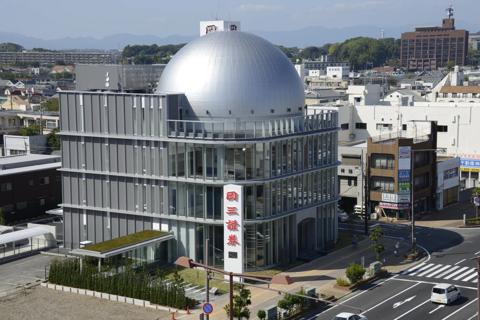

The Okasan Digital Dome Theatre Kagura Dome, situated within the Okasan Securities Group Tsu Building in Mie Prefecture, Japan, was inaugurated to commemorate the 90th anniversary of the company’s founding.
The project’s ambition was to establish a high-quality public resource in the shape of the 14.4m diameter dome theatre dedicated to educational programming for local students and the wider community. In addition, the facility was to serve as a presentation venue where Okasan Securities Group could leverage the unique expressive power of the dome theatre as a presentation space for investment information and other purposes.
This commitment to accessibility and scientific literacy demanded a projection system that could not simply display content, but create visuals of infinite, crystalline clarity. When inaugurated in 2013, the Okasan Digital Dome Theatre Kagura Dome featured Barco SIM 10 projectors for display. Uniview software developed by Sciss, a company that realises full dome theatre solutions for planetariums and science centres, powered the content.
Fast forward to the present, and Okasan Digital Dome Theatre Kagura Dome was ready to upgrade the visual capabilities of the theatre. While classic projectors can still deliver the requisite performance level, they are becoming limited in their ability to display dynamic, data-rich, modern video content.
After admirably powering the visuals for over a decade, the end user was satisfied with the quality and the performance of the Barco projectors. Therefore, when the decision was made to upgrade the visual system, the end user chose Barco’s F400-N4K model. These projectors are equipped with the latest cutting-edge native 4K laser technology.
The challenge for the Kagura Dome was to select a technology that retained the requisite contrast for the content while offering the resolution needed for seamless, full-motion video across the vast, curved surface. Given the demanding geometry of the 14.4m dome and the necessity for exceptional image quality, the choice narrowed quickly to solutions capable of high light output and precise pixel control.
The Barco F400-N4K models use high-performance DLP laser technology, a feature that directly addresses these stringent technical mandates. Laser illumination offers immediate, tangible advantages over traditional lamp-based competitors. Foremost among these is luminous stability and longevity.
Laser light sources maintain consistent output over tens of thousands of operating hours, and this is crucial for projection systems like the one deployed at Kagura Dome, where five F400-N4K projectors work in tandem. When numerous projectors collaborate to form a single image; consistent brightness across all channels is non-negotiable for maintaining quality, blended visuals.
Furthermore, the inherent stability of the F400-N4K laser system drastically reduces the frequency of intrusive maintenance and recalibration, ensuring the theatre’s continuous operational availability for educational programming and presentation events.
The technical execution at the Okasan Digital Dome Theatre Kagura Dome required a high degree of precision, necessitating the deployment of sophisticated geometric correction and blending tools. Dome projection is complex because the relationship between the projector lens and the screen surface is constantly changing, necessitating the image to be warped and blended to compensate for curvilinear distortion. Barco’s projection systems come equipped with the tools to handle this complexity.
When it comes to performance, planetariums and dome projection require great contrast and immense colour fidelity. It all starts with ‘true black’. Due to the nature of the content showcased in planetariums, blacks must look black. This lays the foundation for the content to shine. The technique of optical blending specifically helps domes and planetariums create high contrast environments, but the performance of the selected projector is a significant factor.
While the residual ‘grey light’ emitted by most digital projectors must be precisely managed in planetarium environments, this is an area where Barco projectors shine. The contrast performance of the F400-N4K projectors, combined with superior blending capabilities, ensures that the audience perceives a monolithic image, free from visible seams or distracting increases in light leakage where the edges of projections meet. And of course, when it comes to colour reproduction and fidelity Barco projectors have no peers.
Not just resting on its impressive track record, the manufacturer has introduced Barco Pulse which the F400-N4K projectors are equipped with. These next generation proprietary electronics ensure advanced low-latency processing operations, like pixel-shifting, warping, and blending, to take place seamlessly. Pulse provides Barco projectors a unique edge and significant advantage in the real-time processing environment which are on ample display at Okasan Digital Dome Theatre Kagura Dome.
The system integrator’s role in the deployment must also be highlighted in ensuring the success of the Okasan Digital Dome Theatre Kagura Dome. Barco is focused on creating the tools and visual solutions that allow artists and technicians to bring their ideas to life. But the skill and dedication of Barco’s partners are what translate the technical proficiency of Barco products into tangible outcomes for users and patrons.

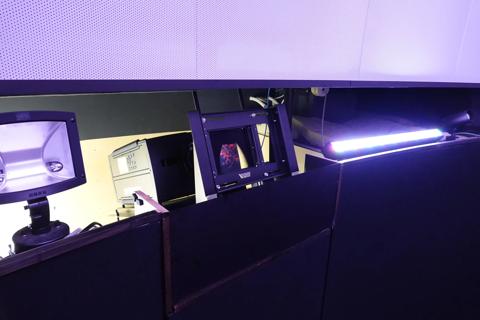

The system integrator, Okasan Kogyo & Orihalcon Technologies, must be credited for converting the technical specifications into a flawless experiential reality and maximising the potential of the Barco projectors. This involved the meticulous physical mounting of the projector units, followed by the complex and subtle process of alignment and colour matching across the entire array.

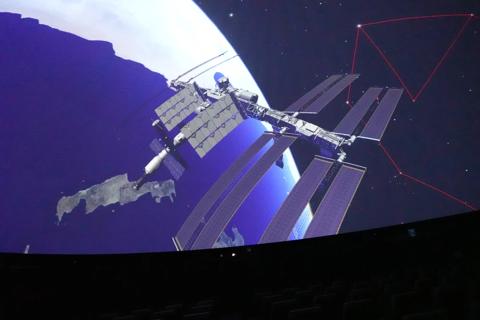

The operational outcome at the Okasan Digital Dome Theatre Kagura Dome is a demonstrably successful deployment that meets, and in many respects exceeds, the stringent demands of high-level digital immersion. The 80-seat theatre now offers audiences an unparalleled level of visual fidelity, capable of displaying both the texture of planetary rings and the dramatic, high-contrast shockwaves of a supernova as well as content for presentations.
This technological foundation allows the dome’s educational content to achieve maximum impact, fostering scientific curiosity and delivering moments of awe that are essential to the learning process. The seamless integration of the Barco system means the technology effectively disappears, allowing the focus to rest entirely on the boundless scope of the content itself. The Kagura Dome stands as a contemporary model for digital planetariums, showcasing how precise engineering and market-leading projection systems combine to deliver enduring, high-quality public service.
The critical role played by Barco projection in achieving the positive outcomes is summarised by Mr Hattori, director of Kagura Dome: “The F400-N4K brings immersive experience thanks to the high brightness and contrast. We can see more details, which were not clear with the old projector.”
