9.3 Control Software Operation

Overview

In this section we will use the control software (Event Master Toolset Software) to setup the E2 and create presets and user keys to be used during the event. We will follow the steps sequentially outlined in diagram bellow.

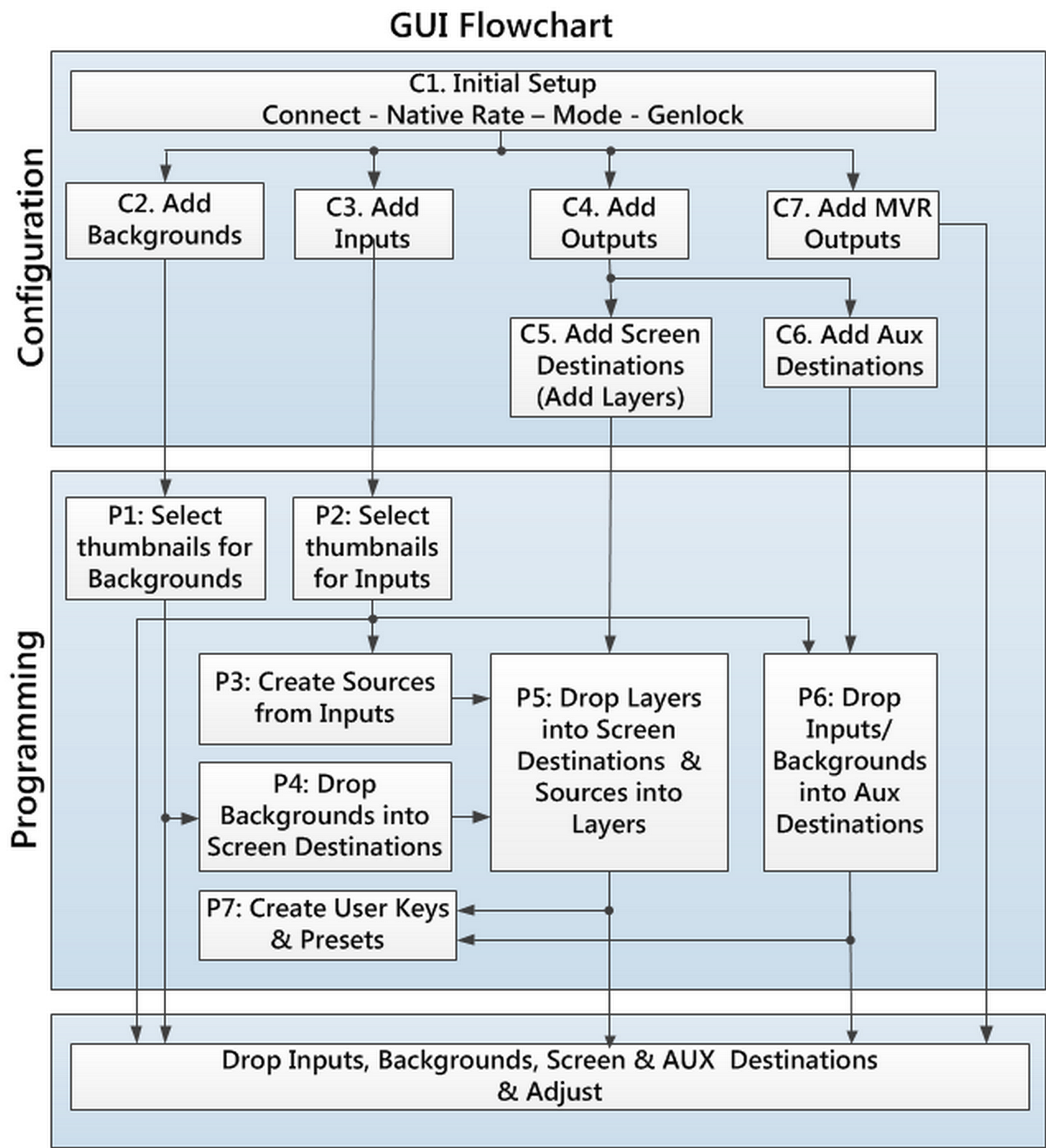

Workflow Diagram

This diagram shows all the steps necessary to setup the system.

Image 9–4
Set up from A to Z

As outlined in the previous chapter the control software is divided in 3 parts:

  1. Configuration Menu. In this section users define the system components like inputs, backgrounds, outputs and destinations. See the detailed procedure in section“Configuration Menu”.
  2. Programming Menu. In this page users create sources from inputs, drop layers and backgrounds into screens and create User keys and presets. See the detailed procedure in section “Programming Menu”.
  3. Multiviewer (MVR) Menu is the module used to setup the Multiviewer outputs (on one or more monitors). See the detailed procedure in section “Multiviewer (MVR) Menu”.
