    PDS-4K Audio and DisplayPort 1.2 input card
    Get your quote

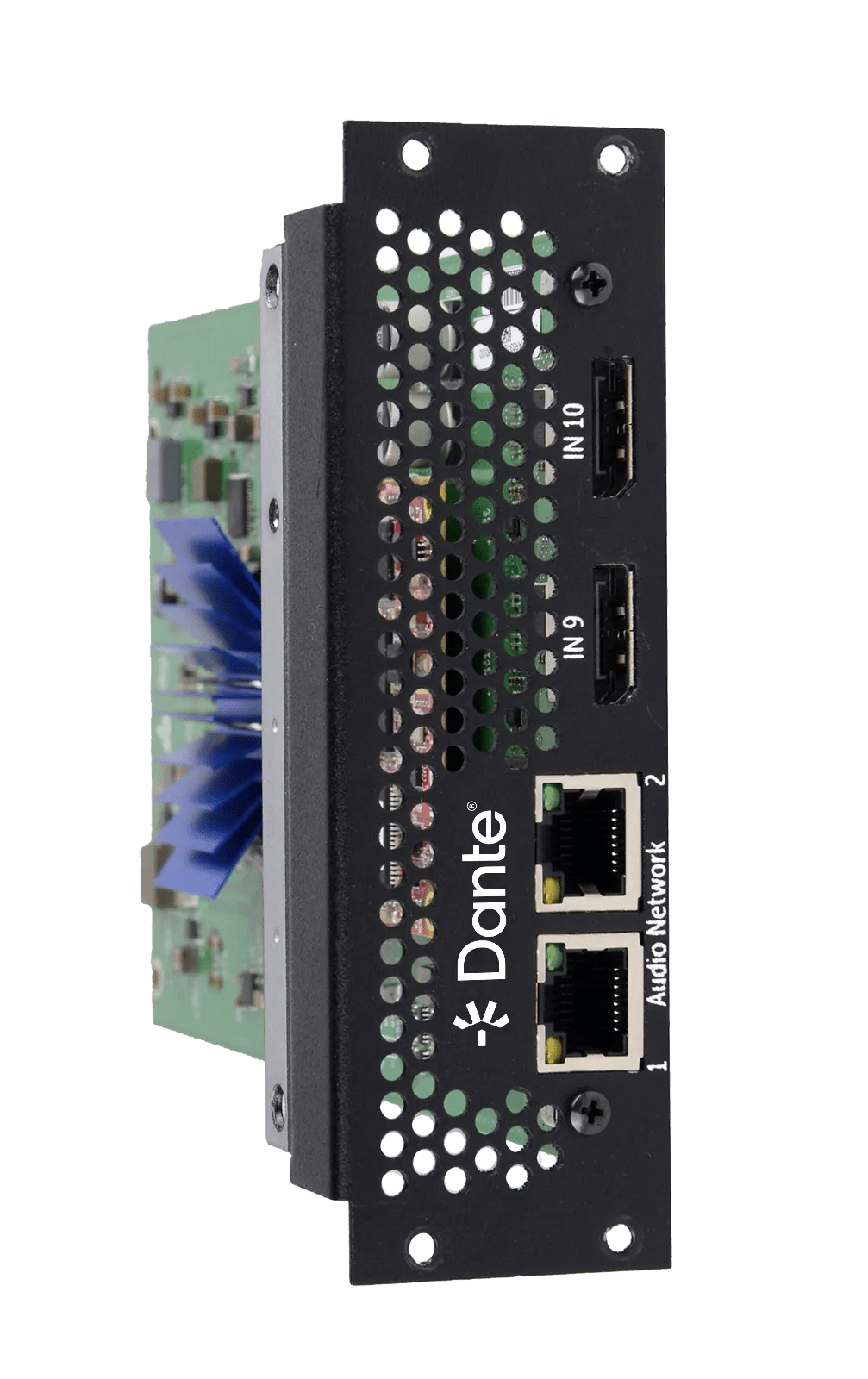

    PDS‑4K Audio and DisplayPort 1.2 input card

    PDS‑4K Audio and DisplayPort 1.2 input card

    This product is an option for the following products:
    PDS-4K, PDS-4K SDI
    • Adds Audio pass-through and Dante capability to the system
    • Adds two more input connectors
    Get your quote Where to buy
    1. Download specsheet
    2. Get product support

    Adds the ability for the PDS-4K to pass embedded audio from HDMI/DisplayPort/SDI input to Program outputs and embed/disembed to Dante network audio.

    Adds two DisplayPort 1.2 input connectors.

    PDS-4K includes license from Audinate Pty Ltd under US Patents 7747725, 8005939, 7978696, 8171152, European Patent 2255541, Chinese Patent ZL200780026677.0 and other patents pending or issued, see www.audinate.com/patents

    Specifications

    Download spec sheet
    General specifications
    Connectors
    2x DisplayPort 1.2 Inputs
    2x RJ-45 (Dante)
    Resolution
    3840x2400p @60
    Color depth
    10-bit
    Color sampling
    4:4:4
    HDCP
    1.x
    Signal capacity
    660 MHz
    Audio channels
    2 per input or output
    Audio Sample Rate
    48 Khz
    Audio bit depth
    16bit or 24 bit
    Audio format
    PCM
    AES 67 support
    Yes
    Number of Dante channels
    64 inputs x 64 outputs (2 channels per input or output)
    Features
    Outputs selectable between specific input, Dante Audio, or Audio follows video
    PGM audio return to Dante
    All inputs transmit to Dante
