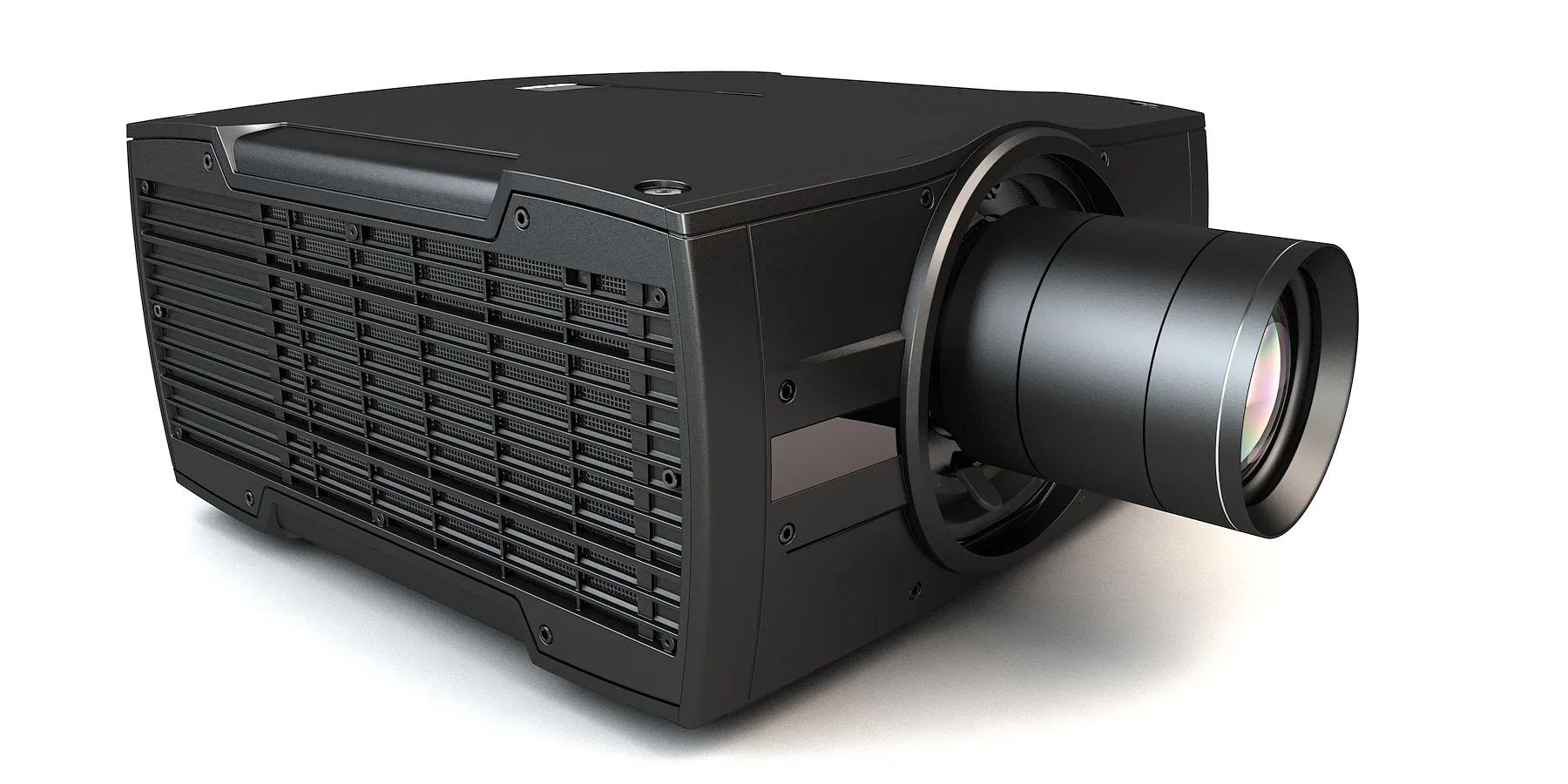

Using Barco’s renowned Pulse electronic and software platform, Bragi is powered by a revolutionary, new, high lumens density (HLD) RGB LED light engine.

Bragi

Using Barco’s renowned Pulse electronic and software platform, Bragi is powered by a revolutionary, new, high lumens density (HLD) RGB LED light engine.

  • Theater Series
  • 4K UHD Resolution (3,840 x 2,160)
  • Solid State RGB LED
  • Up to 2,600 ANSI Lumens

Bragi takes its name from an historical ninth-century poet. His poems were so outstandingly artful and moving that subsequent generations imagined that, upon his death, Odin had appointed him the court poet of Valhalla.

Bragi, being Balder’s brother and inherits the same design philosophy, optical core and lenses.


State of the art electronics

Our Pulse electronics are built on a superior FPGA platform featuring a dual core processor on the industry’s only 20 nm SoChave, with 96 transceiver lanes delivering 3.3Tbps of serial bandwidth.

Thanks to our unique single step processing technology(SSPTM), Pulse electronics are designed to process 4K UHD, HDMI 2.0a, HDCP 2.2 and HDR10 signals with extremely low latency.

Bragi uses the very latest 0.9" DMD DLP chipset, to display flawless 4K UHD (3,840 × 2,160 px) images.

LED Engine

Bragi uses a new optical engine, incorporating the best elements from previous models and combining them with new technologies, creating an even better optical engine.

Bragi’s optical engine is not the only part that is redesigned, the light source is brand new, and this time it’s not laser. The light source uses the very latest high lumens density (HLD), LED illumination technology.

HLD LED is unique in that it works around the ‘law of etendue’ (a property of light in an optical system, which characterizes how “spread out” the light is in area and angle...) to deliver a superb color experience and incredible brightness while enabling new levels of resolution.

RealColor

Combining HLD LED illumination with regular LED colors which appear more saturated, the human eye is tricked to interpret this as richer, brighter colors than they are physically measured. Bragi also includes a motorized DCI/P3 filter for improved HDR color accuracy.

Additionally, Barco’s RealColor processing enables simple and accurate calibration to your desired color gamut or white point.

Specifications

Download spec sheet
General specifications
Projector type
Single chip DLP
Technology
0.9" DMD™
Resolution
3,840 x 2,160 (4K UHD)
Aspect ratio
1.78:1
Light source
Solid State RGB LED
Light source lifetime
Up to 50,000 hours *
Brightness mode dependent
Light output
Up to 2,600 ANSI Lumens
CLO (constant light output)
Yes
Contrast ratio
1,800:1 Sequential
450:1 ANSI
Brightness uniformity
>90%
Lens range
(R9802232) - EN68 (0.30:1) - Periscope Lens (requires vertical installation)
(R9801832) - FLDX UST (0.41:1) - 90° Lens
(R9802244) - EN67 (0.65:1)
(R9802243) - EN66 (0.80 - 1.21:1)
(R9802003) - EN76 (0.95 - 1.30:1)
(R9802242) - EN63 (1.20 - 1.70:1) *
(R9802241) - EN61 (1.70 - 2.50:1) *
(R9801211) - EN44 (2.50 - 4.60:1)

* Standard Lens Option(s)
Optical lens shift

Up to 88% vertical lens shift & up to 38% horizontal lens shift (depending on lens selection)

Visit the Barco Residential Lens Calculator for further information
Download Lens & Airflow Data Here
Optical dowser
Yes
Color correction
P7 RealColor™
Color gamut
REC.709
DCI (P3) via internal filter
Image processing
Embedded Warp & Blend Engine
WARP
4-Corner Warp & Bow Correction via Warp Engine
Orientation
360° Rotation
Network connection
10/100 Ethernet via RJ45 connection
Integrated web server
Yes
Diagnostics
via Prospector web interface
HDR
HDR10
3D
Active Stereoscopic 3D
Additional hardware required please contact an authorized Barco representative for details
Inputs
1 x HDMI 2.0 (HDCP 2.2)
1 x HDBaseT (HDCP 1.4 - 9Gbps only)
2 x Dual Link DVI-D
2 x Display Port (1.2)
12G-SDI 1 x RJ45 Ethernet
1 x RS232
1 x Remote Control (RC)
3 x USB (2 x Rear, 1 x Front)
DMX (1 x Input, 1 x Output)
Input resolutions
From VGA up to 4K UHD (3,840 x 2,160) @ 60Hz
or up to 2,560 x 1,600 @ 120Hz
Latency
TBD
Control
IR, RS232, IP, 12v Trigger
Driver modules available for: Crestron, Control4, RTI & Savant NOTE: 12v Trigger(s) do not follow standard functionality and require an IP command to enable / disable them.
Download our integration guide for more information.
Power requirements
100 - 240V / 50 - 60Hz
Power consumption
570 W - Max
BTU per hour
1,945 BTU/h - Max
Noise level (typical at 25°C/77°F)
30 - 33 dB(A) Max.
Operating temperature
10 to 45 °C at Sea Level
Optimal Set Point: 20 °C
Operational humidity
20 to 80% (relative humidity)
Airflow requirements
Air Inlet (from Rear w/Feet Down):  Right Side
Exhaust (from Rear w/Feet Down):  Rear Clearance Requirements:
Front: 1cm
Left: 1cm
Right: 25cm
Rear: 25cm
Top: 1cm
Exhaust airflow
58 ft3/min @ 22.9 °C
99 m3/hour @ 22.9 °C
Download Lens & Airflow Data Here
Dimensions (WxLxH)
Excluding lens
450 x 482 x 255 mm
17.7 x 19 x 10 in.
Weight
Excluding lens
21.5 kg / 47.4 lbs
Shipping Dimensions
Excluding lens
464 x 679 x 773 mm
18.27 x 26.7 x 30.4 in
Shipping weight
TBC
Standard accessories
Power Cord, Remote Control
Certifications
CE, FCC Class A and cCSAus
Warranty
Limited 3 years parts and labor
Extendable up to 5 years
24/7 operation
This projector is designed and warranted for heavy duty 24/7 operation.
Specific measures and design considerations have been made in order for it to comply with stringent requirements in challenging applications.
*
* Service required following 20,000 hours use
Please contact an authorized Barco representative for details
