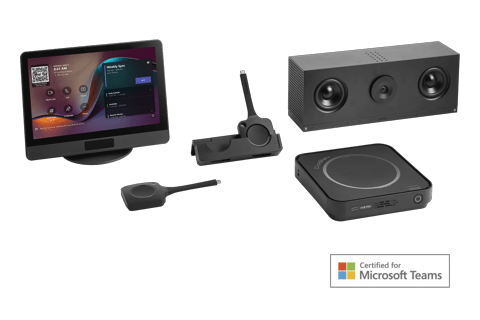

ClickShare Hub Pro and Control Panel Kit

General Specifications

Operating system

Android (MDEP)

Microsoft Teams Rooms license required

Yes

System requirements

For ClickShare App. Minimum: Intel Core i3 or AMD Ryzen 5, 8GB RAM, Windows 10 20HS; Intel Core i3 or Apple Silicon M1, 8GB RAM, macOS 11 Big Sur Recommended: Intel Core i5/Ultra 5 or AMD Ryzen 7, 8GB RAM, Windows 11 latest build; Apple Silicon M3, 8GB RAM, macOS latest build

Video outputs

HDMI-1: UW5K WUHD (5120*2160) @30Hz HDMI 2.0 HDMI-2: 4K UHD (3840*2160) @30Hz HDMI 2.0 eDP (Control Panel): HD (1280*800) @60Hz DP 1.4

Video inputs

4K UHD (3840*2160) @30Hz HDMI 2.0

Audio output

USB-A 2.0/3.0 USB-C 2.0/3.0 HDMI 2.0

ClickShare Buttons

2 ClickShare Button 5th Generation

ClickShare App

Desktop

Maximum sources simultaneously on screen

1

Noise Level

Maximum 25 dBA @ <30°C Maximum 30 dBA @ >30°C

Wireless transmission protocol

IEEE 802.11 a/b/g/n/ac/ax/be and IEEE 802.15.1 BT 5.3

Reach

Max. 30m (100ft) between ClickShare Button and ClickShare Base Unit

Frequency band

2.4GHZ, 5GHz and 6GHz DBS/HBS (DFS channels supported in select number of countries)

Connections

Back: 1x Ethernet LAN 1Gbit 1x USB-C Power delivery 3.1 EPR (for power adapter) 2x HDMI 2.0 output 2x USB-C 2.0/3.0 1x USB-A 2.0/3.0 1x USB-C 2.0/3.0 Device + USB-C DisplayPort™​ output 1x USB-C 2.0 + USB-C DisplayPort™​ output Front: 1x USB-C 2.0/3.0

Temperature range

Operating: 0°C + 40°C (+32°F to +104°F) Max 35°C (95°F) at 3000m Storage: -20°C to +60°C (-4°F to + 140°F)

Humidity

Storage: 0 to 90% relative humidity, non-condensing Operation: 0 to 85% relative humidity, non-condensing

Anti-theft system

Kensington lock

Certifications

FCC/CE

Network connection

LAN

Management and reporting

Yes, XMS Cloud

Warranty

3 years standard

Dimensions (HxWxD)

37 * 180 * 180 (mm)

Power consumption

Operational: 160W (max) Standby

Power supply

External USB-C charger 100W (PD3.0 SPR), 180W (PD3.1 EPR)

Weight

720g

Box content

ClickShare Hub Pro Base Unit, 2 ClickShare Hub Button 5th Gen, Mounting disc, Safety manual, Quick setup guide, ClickShare Control Panel, ClickShare 10M 20W USB-C AOC cable, L-Shape mounting plate, Round base, Screw pack, Safety manual, USB-C cable lock kit

ClickShare 10M 20W USB-C AOC Cable (Directional)

Cable Length / Diameter

10M / 6mm

Interface

USB Type-C 3.2 Gen1, DP 1.4

Power Delivery

20W

Bend Radius

60mm/30mm (Fixed/Temporarily) While a minimum bend of 30mm is acceptable during handling or routing, it must not be maintained as a permanent fixture

Temperature range

Operating: -10°C + 60°C (+14°F to +140°F) Storage: -20°C to +70°C (-4°F to + 158°F)

Humidity

Storage/Operation: 0 to 85% relative humidity, non-condensing

Flame rated

VW-1 (Not plenum reated)

Power supply

AC Input

100-240V~50-60Hz 2.4A

DC Output

180W max (36V 5A) / 140W (28V 5A) / 100W (20V 5A) / 45W (15V 3A) / 27W (9V 3A) / 15W (5V 3A)

Output Plug

USB Type-C

Input AC Type

IEC60320-C6

Energy Efficiency Level

Comply with DOE standard Level VI

Altitude

5,000 meters

DC cable length

1.5m

Power cord

Color

Black

Length

0.5m

Plug Type

EU / US / UK / CN / CH / IN / ZA / ANZ

Connector Type

IEC60320-C5

Control Panel

Touchscreen

10.1-inch projected capacitive touchscreen with anti-fingerprint and anti-glare coatings, supporting up to 4 touch points for enhanced visibility and durability

Resolution

1280*800 @60Hz

Brightness

300 nits

Contrast ratio

Automatically detects in-room human movement within a 2-meter range and 90° field of view to wake the system.

Viewing angle

USB Type-C 2.0, DisplayPort Alt Mode, PD3.0 Recommend using the included ClickShare 10M USB-C AOC cable for optimal performance

Human detection sensor

80° (Up/Down/Left/Right)

Connections

USB Type-C 2.0, DisplayPort Alt Mode, PD3.0 Recommend using the included ClickShare 10M USB-C AOC cable for optimal performance

Anti-theft system

Kensington lock

Temperature range

Operating: 0°C + 40°C (+32°F to +104°F) Storage: -20°C to +60°C (-4°F to + 140°F)

Humidity

Storage: 0 to 90% relative humidity, non-condensing Operation: 0 to 85% relative humidity, non-condensing

Dimensions (HxWxD)

254.5 x 187.9 x 76.9 (mm)

Power consumption

Powered over USB from connected Base Unit Operational: 7.3W (max) Standby: <0.5W

Weight

820g
