MCC‑300‑2HI‑1SI‑3SO‑8F
- CE Class I medical device
- Uncompressed visualization you can trust
- Video latency guaranteed not to exceed a single frame
- Connect up to 16 additional FHD interfaces or up to four 4K interfaces using external fiber ports
- Fast deployment and lower TCO
- Best-in-class cybersecurity
- 4K today, ready for 8K when you are

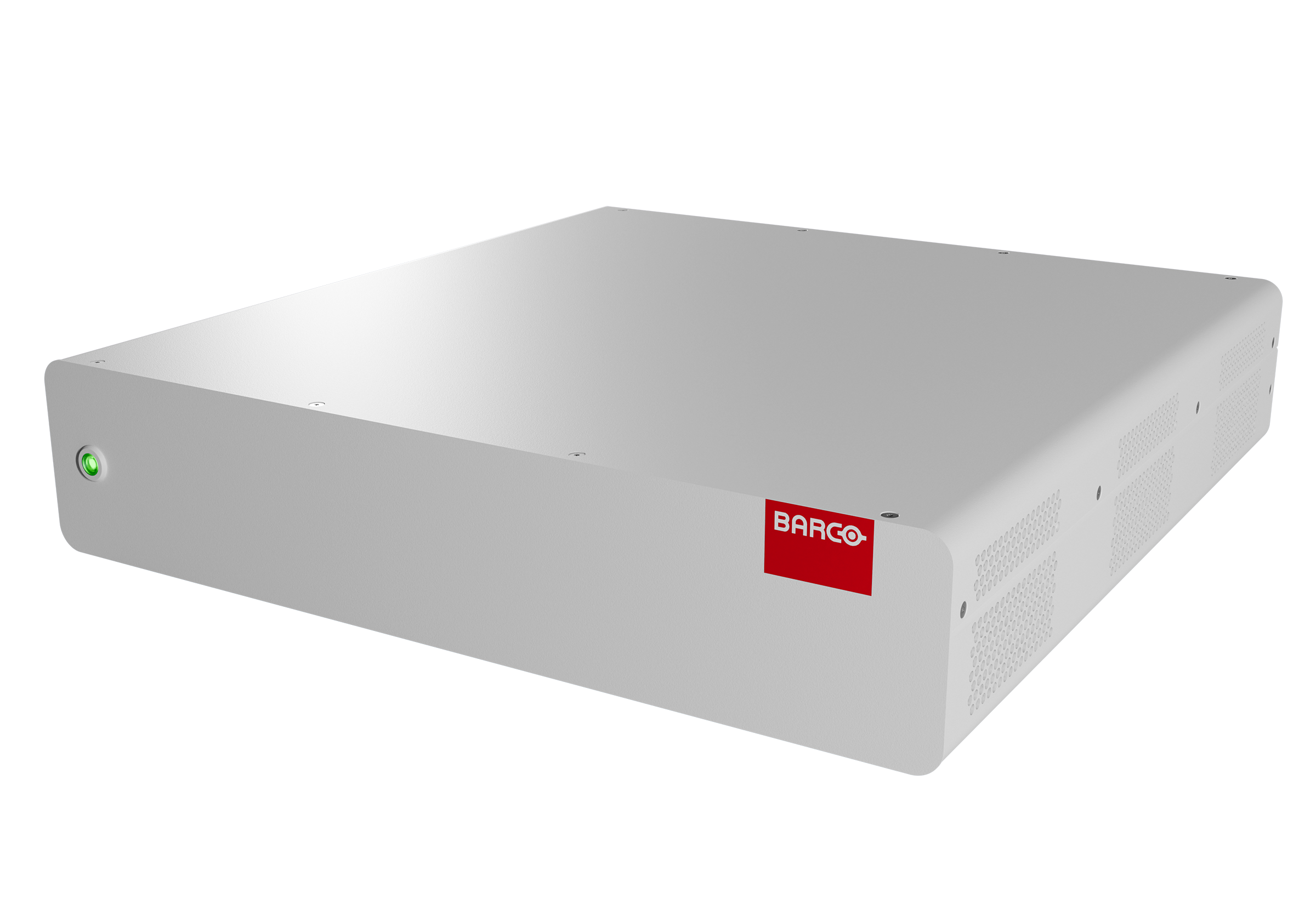

NexxisCube
Secure, compact all-in-one AV-over-IP solution for uncompressed audio and video routing
Integration solutions for the OR, Endoscopy Suites and Image Guided Rooms
NexxisCube is a secure, compact, all-in-one CE Class I medical device that delivers uncompressed audio and video over a fiber IP network. While Nexxis 2 addresses the complex integration needs of hybrid and general multi-functional ORs, NexxisCube is the ideal solution for cost-sensitive markets and surgical environments focused on select invasive therapeutic endoscopy procedures.
Complex integration made simple
NexxisCube’s compact, out-of-the-box design supports multiple inputs, outputs, and enables switching between sources and displays. All network complexity is hidden, which allows for a highly intuitive environment to manage sources and destinations.
Scale at your own pace
The Nexxis 2 modular software platform means functionality can be selected and installed according to clinical use. Automatic resolution management, centralized K&M control, RS232 and audio support, GPIO triggers and snapshots, dynamic thumbnails, Quad View, Composition Streamback, clone output, and loop through are just a few of the many features available. These capabilities help maintain flexibility when video I/O is limited. NexxisCube can expand clinical workflows through its external fibre ports, enabling connection of up to 16 additional FHD interfaces or up to four 4K interfaces. Fiber connectivity also supports longer cable runs than copper and is free from electromagnetic interference, helping keep the OR flexible, reliable, and ready for future integration needs.
Secure and future-ready
Designed for seamless integration with evolving imaging requirements such as 8K and innovative technologies, including wireless and AI-powered applications, NexxisCube is secure by design. It follows OWASP/ASVS security principles, with hardened, encrypted fiber streams and zero-trust access.
The product includes a 2-year warranty, with service options available to extend protection for up to 5 years.
Specifications
Download spec sheetModel
- MCC-300-1HI 2SI-3SO-8F
- Inputs: 1 HI slot, 2 SI slots Outputs: 3 SO slots In/Out: 8 Fiber
- MCC-300-2HI 1SI-3SO-8F
- Inputs: 2 HI slots, 1 SI slot Outputs: 3 SO slots In/Out: 8 Fiber
- MCC-300-2HI 1SI-1HO-2SO 8F
- Inputs: 2 HI slot, 1 SI slots Outputs: 1 HO slot, 2 SO slots In/Out: 8 Fiber
General Specifications
- Latency
- When genlocked, the end-to-end latency is less than 5ms
- Security
- Min. AES 128 encryption of all video, data & control signals
- Processing resolutions
- Up to 4096x2160@60Hz
- Color Depth
- RGB 8-bit, YCbCr 4:4:4 8bit or YCbCr 4:2:2 10-bit
- AVoIP Connectivity
- 8x SFP+ cages for pluggable 10GbE optical transceivers (duplex fiber), for usewith Barco Nexxis 2 encoders, decoders, displays and PCIe cards
- Ethernet
- 4x RJ45 1GbE, 3x on the internal Nexxis Network, 1x uplink to the Hospital Network
- USB
- 4x USB Type A
- Audio
- Line-in: 1x 3.5mm TRRS jack by default and 1x 3.5mm TRRS jack per HIslot for stereo audio
- Line-out: 1x 3.5mm TRRS jack for stereo audio
- Other: 1x Speaker Out balanced stereo audio output (15W per channel, 8 Ohm) on 4-pin Phoenix connector
- GPIO
- 2x 3.5mm jack TRRS connector for camera trigger and general IO
- External power output
- 4x Isolated 12VDC, 45W out per port on 3-pins Phoenix connectors
- Power rating
- 100-240 V +/-10%, 50/60 Hz, 8-4 A
- Power consumption
- Max: 600W
- 300W
- at an ambient temperature of 25°C
- Size
- 410mm (W) x 400mm (D) x 88mm (H)
- Weight
- <11kg
- Operating Temperature
- Ambient : 5°C to 40°C (41°F to 104°F)
- Operating Humidity
- Max 85%
- Storage Conditions
- Storage temperature: -20°C to 60°C (-4°F to 140°F)
- Storage Relative Humidity: 10% to 93%
- Storage altitude: 500 hPa - 1060 hPa
- Acoustic Noise Levels
- <40dBA at 20°C at 1m
- Mounting
- Accessory rack mounting kit available
- Certifications
- CB (IEC 60601-1) Informative report -CB (IEC 60950-1) -CE medical deviceclass I -UKCA BIS Registration, IS 13252 (part 1)
- Standards
- Medical Equipment: -IEC 60601-1:2005 + A1:2012 + A2:2020 -IEC 60601-1-6:2010 + A1:2013 + A2:2020 -IEC 60601-12: 2014+A1:2020 (Ed.4.1) -ANSI/AAMI ES 60601-1:2005 + A1:2012 + A2:2021 -CAN/CSA-C22.2No.60601-1:08 + A1: 14 (Reaffirmed 2022) -EN 60601-1:2006 + A1:2013 +A12:2014 + A2:2021 -EN 60601-1-6:2010 + A1:2015 + A2:2021 -EN 60601-1-2:2015 + A1:2021 (Ed.4.1) -FCC class B -ICES-001 Level B ITE Equipment:-IEC 62368-1:2018 -EN IEC 623681:2020 + A11:2020 -IS 13252 (Part1):2010
- API
- Nexxis 2 Management System
Video inputs
- HI Slot
- 2x HDMI 2.0 (lockable connectors) capable
- SI Slot
- 4x SDI (lockable connectors) supporting 3G SDI on SDI In 1,2,3,4 or 12G SDIon SDI In 1 or QUAD 3G SDI on SDI In 1, 2, 3 & 4
Video outputs
- HO Slot
- 2x HDMI 2.0 (lockable connectors) capable of 4k (clone on both) or 2independent FHD
- SO Slot
- 4x SDI (lockable connectors) supporting 4 independent 3G SDI on SDI Out1,2,3,4 or 12G SDI cloned on all
