MDEC‑2523
FHD Surgical Display
- Crisp Full HD visualization
- Easily adjustable picture-in-picture
- Flexible HDMI™ and 3G-SDI connectivity
- Compact and lightweight design
- Easy to operate and clean
- Reliable long-term support
In endoscopy, the display is a link between the imaging system and the clinical team. It needs to present endoscopic video clearly, connect reliably with different camera systems, and fit naturally into environments where space, weight, and cleaning routines shape every equipment choice. The MDEC-2523 brings these priorities together in a compact medical display for GI, OB/GYN, ENT, and urology workflows.
The MDEC-2523 is designed to deliver crisp visualization of intricate anatomy and complex structures while giving users the flexibility to adapt the viewing experience. Easily adjustable picture-in-picture functionality allows the image size and position to be adjusted to user preferences,helping teams organize visual information according to their preferences and the needs of the procedure.
Built for straightforward integration, the display combines HDMI™ and 3G-SDI connectivity with a compact, lightweight 7.5 kg design. It can be incorporated into endoscopy towers, carts, and trolleys, and is also suited to selected boom-arm replacement opportunities where weight restriction is an important consideration. Practical details - including intuitive on-screen display navigation, one-touch power control, and intelligent cable management - help keep operation simple in busy clinical settings.

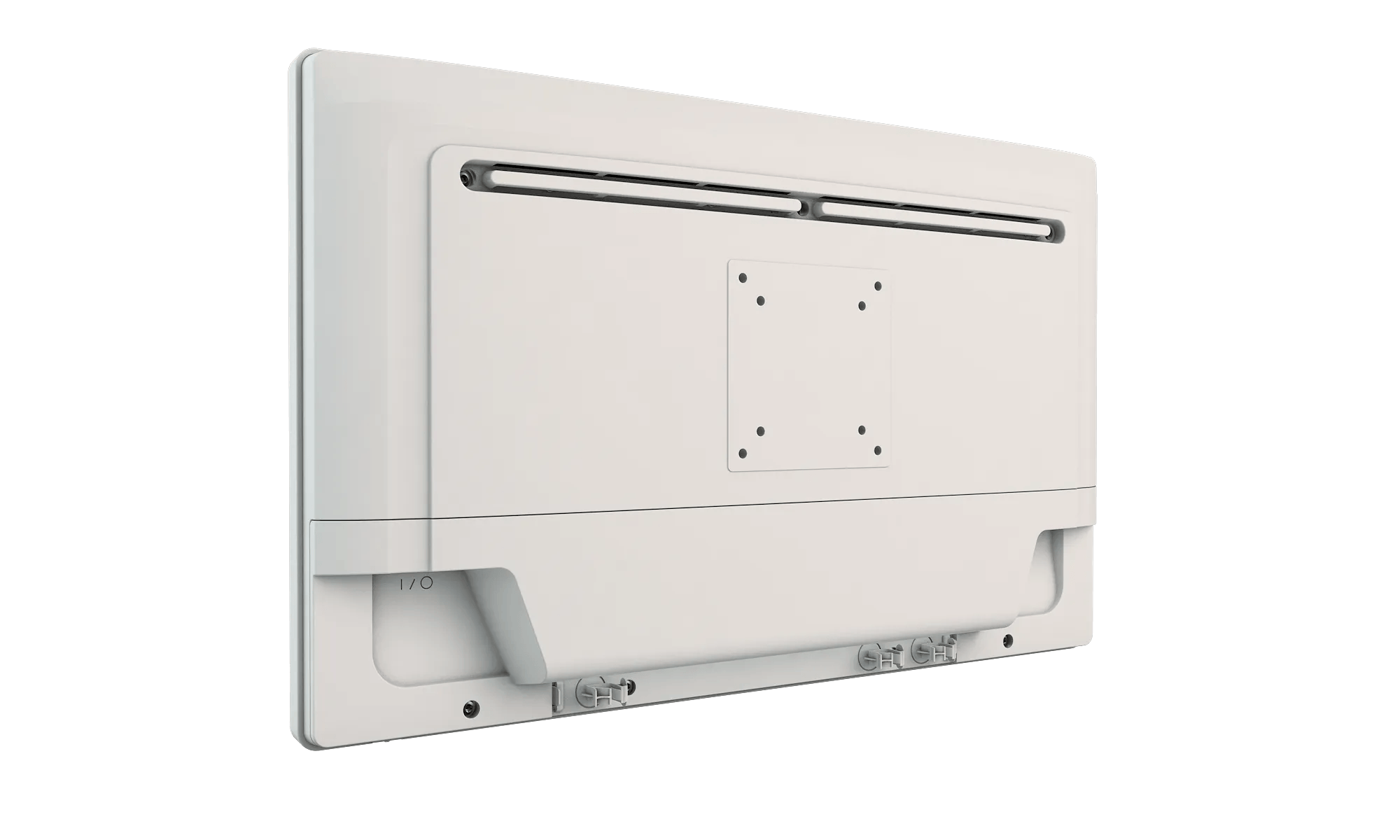

Cleanability is considered throughout the design. The sealed front glass, streamlined rear housing, cable cover, and fanless construction create a surface concept that supports routine wipe-down cleaning and low-maintenance use. Together with medical device certification for the EU and Japan, a three-year warranty, and optional EssentialCare coverage for up to five years, these features make the MDEC-2523
Key benefits
- See the detail that matters: Crisp Full HD visualization supports a clear view of intricate anatomy and complex structures in endoscopic procedures.
- Shape the view around the procedure: Picture-in-picture brings complementary imaging sources together on one screen, including in specific procedures, and lets users reposition the secondary image to match their viewing preferences.
- Integrate with confidence: HDMI™ and 3G-SDI connectivity support compatibility with a wide range of camera systems, while the compact 7.5 kg design fits towers, carts, trolleys, and selected boom-arm replacement opportunities.
- Intuitive on-screen display navigation, one-touch power control, and intelligent cable management help teams work efficiently in busy endoscopy environments.
- Support routine cleaning: Sealed front glass, a streamlined rear design, a cable cover, and fanless construction are designed for wipe-down cleaning and low-maintenance use.
- Choose long-term reassurance: A three-year warranty, and optional EssentialCare coverage for up to five years provide added confidence.
Specifications
Download spec sheetGeneral Specifications
- Screen technology
- TFT-LCD
- Active screen size (diagonal)
- 605 mm
- Active screen size (H x V)
- H= 527 mm V= 296 mm
- Aspect ratio (H:V)
- 16:9
- Resolution
- 2MP (1920 x 1080)
- Pixel pitch
- 274.5 x 274.5 um
- Color imaging
- Yes
- Gray imaging
- Yes
- Color support
- 16.7M colors (RGB 8-bit)
- Viewing angle (H, V)
- H= 178° V= 178°
- Backlight output stabilization(BLOS)
- Yes
- Optical glass
- Yes
- Minimum luminance
- 200 cd/m²
- Maximum luminance
- 300 cd/m²
- Default luminance @6500K(stabilized)
- 300 cd/m²
- Contrast ratio
- 1000:1 (typical)
- Response time (Tr + Tf) / 2
- 14 ms (typical)
- Housing color
- Glass: White Silkscreen RAL 9003
Bezel: White RAL 9003
Rear cover / Cable cover: White RAL 9003

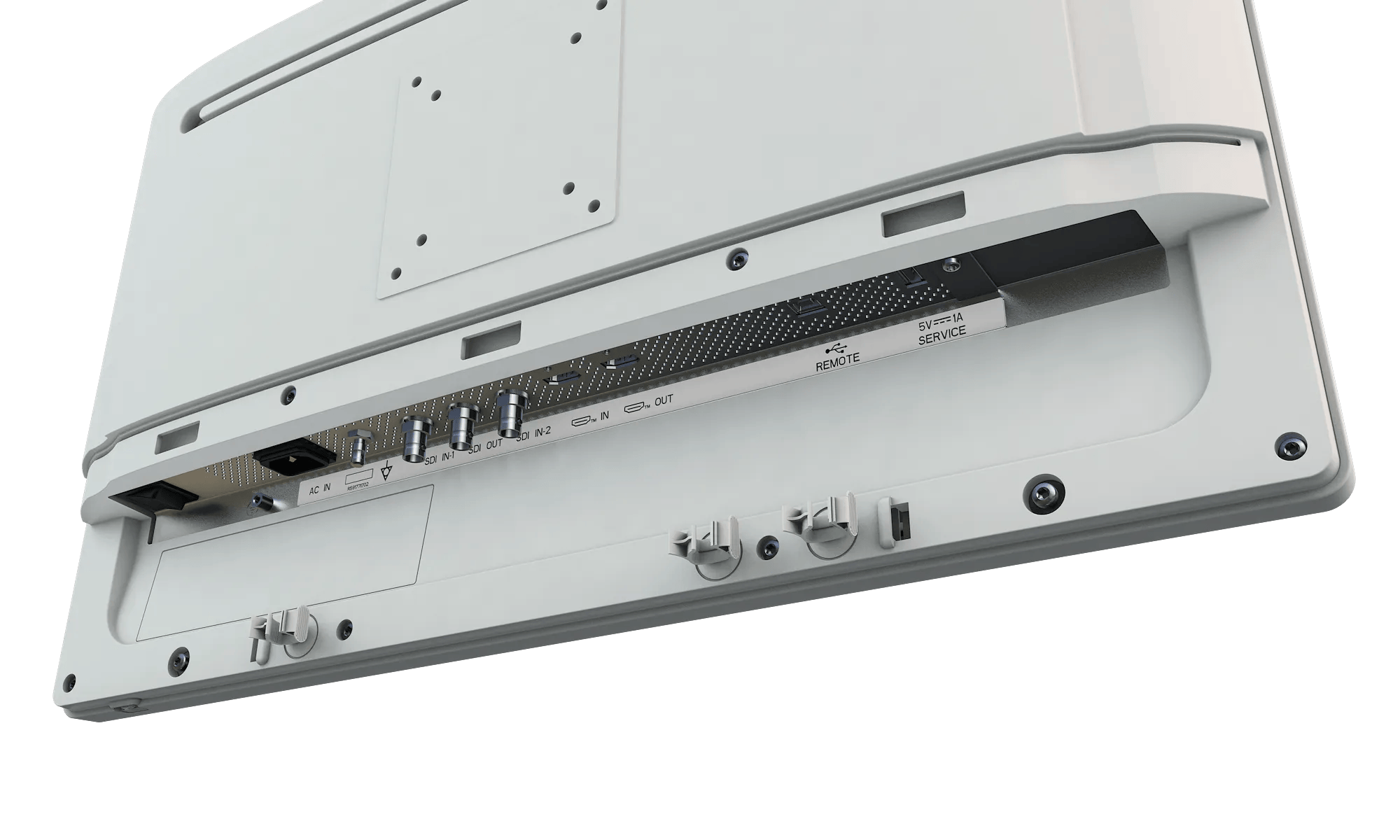

- Video input signals
- 2x 3G SDI
1x HDMI™ 2.0
- Video output signals
- 1x 3G SDI
1x HDMI™ 2.0
- Power source requirements for display power input (nominal)
- AC input: 100-240 VAC / 47-63 Hz auto-switch
- Power consumption (nominal) INTERNAL PowerSupply Mod. MDS-100APS24 B
- Max. 50W
Low Power Mode: <15W (typical)
Switched Off: 0W
- Power save mode
- Yes
- OSD languages
- English, Japanese, Chinese, Korean, French, German
- Display dimensions w/o stand (W x H x D)
- 580x360x67.5 mm (22.8x14.2x2.6 inches)
- Dimensions packaged (W x H x D)
- 708x513x195 mm (27.9x20.2x7.7 inches)
- Net weight display w/o stand
- Approx. 7.5 kg (16.5 lbs)
- Net weight packaged w/o stand
- Approx. 11.0 kg (24.25 lbs)
- Mounting standard
- VESA (100 mm and 75 mm)
- Screen protection
- Protective, 2-side anti-reflective with anti-fingerprint coating
- Recommended modalities
- Endoscopy, Laparoscopy
- Certifications
- Approvals/Marking:
- CE (Medical Device Class I), c-UL-us, DEMKO, CCC, BIS, INMETRO
- ROHS-3,REACH, WEEE
- AAMI ES60601-1:2005, ES60601-1:2005/AMD1 1:2012, ES60601-1:2005/AMD2:2021
- CAN/CSA-C22.2 No. 60601-1:14/A2:2022
- IEC 60601-1:2005, AMD1:2021, AMD2:2020
- EN 60601-1:2006 / A1:2013 / A12:2014 / A2:2021
- IEC 62308-1:2018, EN IEC 62308-1:2020+A11:2020
- IS 13252(Part 1):2010/ IEC 60950-1:2005
- ABNT NBR IEC 60601-1:2010+Emenda 1:2016 + Emenda 2:2022
- IEC 60601-1-2: 2014 + A1:2020
- EN 60601-1-2: 2015 + A1:2021
- FCC part 15 Class B
- ICES-003 Level B
- ABNT NBR IEC 60601-1-2:2017 + Emenda 1:2022
- Supplied accessories
- 1x printed User Guide
1x documentation disc, containing all translations of the User Guide
1x Power Cord, depending on target country
1x SDI cable
4x cross-head screws M4x20mm for VESA fixation
- Warranty
- 3 years standard warranty
Extension contract possible up to 5 years
- Operating temperature
- 0-40°C
- Storage temperature
- -20 °C to +60 °C
- Operating humidity
- 20 % to 85 % (non-condensing)
- Storage humidity
- 10 % to 90 % (non-condensing)
- Operating pressure
- 3000 m max. / 70 kPa
- Storage pressure
- 70 to 110 kPa
