G lens (1.22‑1.53 : 1)

G lens (1.22‑1.53 : 1)

R9801784

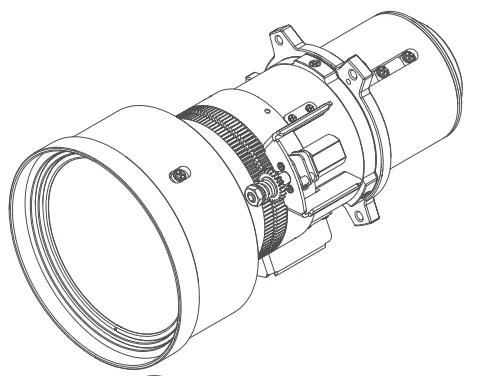

G lens (1.22 - 1.53 : 1) Standard Throw - optimized for WUXGA resolution

For more information please contact Barco.

Specifications

Download spec sheet

General specifications

Lens type: G LENS (1.22 - 1.53 : 1)

Throw Ratio: 1.22 - 1.53 : 1

Working F/#: 2.00 (wide) - 2.30 (tele)

Zoom ratio: 1.25x

Focal length: 18.2 - 22.6 mm

Focus Range: 50” – 300” (Full optical performance)

Throw distance: 1.30 - 9.93 m

Weight: 0.92 kg

Motorized Zoom: Yes

Motorized Focus: Yes
