RGB Laser ODLF-721

RGB Laser ODLF‑721

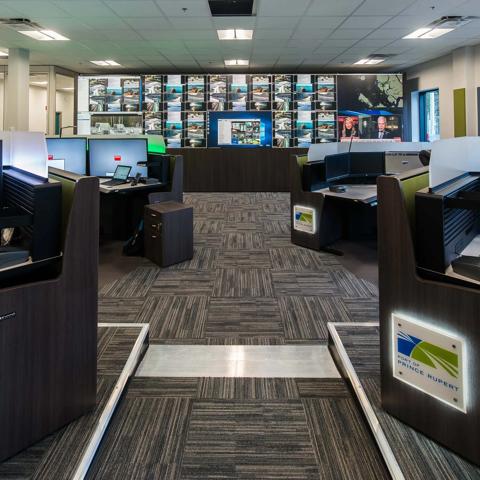

Laser-lit rear-projection video walls for 24/7 control rooms with front access

RGB Laser ODLF‑721

Laser-lit rear-projection video walls for 24/7 control rooms with front access

  • 2x more brightness than mainstream LED-lit rear-projection video walls
  • 25% less power consumption at higher brightness levels
  • Front access eliminates need for rear maintenance area
  • More than 11 years of uninterrupted operation in 24/7 mode
  • Unmatched colors, focus, and contrast levels
  • Silent like never before (‘library’ noise level)
  • Redundancy of critical components for ultimate peace of mind
  • 50% setup-time reduction (motorized 7-axis alignment)

Powered with the latest RGB laser technology, Barco's RGB laser rear-projection video walls delivers unseen brightness levels and vibrant colors, while offering a very low total cost of ownership (TCO). With its 10th generation of rear-projection video walls, Barco again raises the bar for critical infrastructure markets visualization.

Providing 2x more brightness than mainstream LED-lit rear-projection video walls, the RGB laser series take away all brightness issues of earlier video walls. Because the high luminance allows operating under daylight conditions, control rooms can finally light up - which improves operator working conditions! Adding vibrant colors to this mix, that make all nuances clearly distinguishable, you make sure nothing is wrongly interpreted and situational awareness is enhanced. Front access eliminates the need for a rear maintenance area, for control rooms where space is a critical issue.

Over 11 years of uninterrupted 24/7 operations

With the RGB laser for 24/7 control rooms series, Barco takes another giant leap forward in terms of reliability. With a light source lifetime of at least 125,000 hours in both normal and eco-mode, and redundancy of all critical components (including power supply, inputs, and laser drivers), nothing is left to chance when it comes to uptime. Unlike technology used by competitors and in non-24/7 meeting rooms, Barco's RGB laser display series doesn't need a rotating color wheel to operate. Since each color can be uniquely controlled and is not dependent on the segment of a color wheel, it provides color control like never before and eliminates color breakup.

Automatic calibration and alignment

The engine of Barco’s RGB laser for 24/7 control rooms is fully motorized. Installers and maintenance staff will never need to open up the individual modules to perfectly align the individual cubes of the video wall. Using a web interface, the video wall can be remotely aligned by a single technician - including keystone correction. This is far more efficient, more reliable, and less time consuming, saving up to 50% of alignment and adjustments efforts. Combined with the Sense X automatic calibration system, continuously measuring and adjusting brightness and color levels over the complete video wall, users are sure the complete canvas is perfectly balanced at any time.

Specifications

Download spec sheet
General specifications
Resolution
Full HD (1920 x 1080 pixels)
On-screen contrast
1800:1
Screen
Screen typeWV-FELCSILight source lifetime (hrs)Power usage (W)
Boost940 cd/m²650 cd/m²60,000260
Normal730 cd/m²500 cd/m²125,000200
Eco365 cd/m²250 cd/m²125,000120
Mid gain type, 180° viewing angle----
Color
Up to 170% REC709 color triangle
Display technology
Rear projection DLP
White point
Customized white points
Screen gap
Dependant on screen type
Brightness uniformity
Typ. >95% ANSI 9
Typ. >90% ANSI 13
Dimensions
• Diagonal: 70" (Approx.)
• Width: 1,550 mm | 61.02"
• Height: 872 mm | 34.33"
• Depth: 642 mm | 25.28"
• Weight: Projection Module: < 63 kg | 139 lbs
• Weight: Support frame: < 39 kg | 86 lbs
Color stability
Sense X automatic calibration
Redundancy
Redundant laser banks with redundant power supply drivers, input signal & external power supply
Light source
RGB laser (Lasers Class 1 RG2)
AC input voltage
100 – 240 VAC, 50-60Hz
Light source lifetime
> 125,000 hrs in both Normal and Eco mode
Noise Level
Less than 20 dB (measured from 3 meters in front)
Power
120W (eco)
200W (normal)
260W (boost)
Connectivity
2x DP1.2 inputs & 1x output (4K@60Hz)
2x HDMI 2.0 inputs (4K@60Hz)
2x USB ports (only for power)
2x Ethernet ports
Conditions for operation
10°C-40°C | 50°F-104°F
Up to 80% humidity (non-condensing)
Heat dissipation
390 BTU/h (eco)
680 BTU/h (typ)
860 BTU/h (max)
Integration to third party equipment
WEB service API
Signal processing
Loop through
Cropping and scaling with wall configuration
Direct ethernet access
Built in web server
Graphical user interface
All settings and operational parameters
Warranty
2 years
Notes
(1) In general, rear projection video walls have no bezels, only a mechanical gap which depends on video wall configuration and operating temperatures
