FL40-4K MKII

FL40‑4K MKII

Rock-solid and powerful 4K LED projector

FL40‑4K MKII

Rock-solid and powerful 4K LED projector

  • Extreme detail up to 4K (3840 x 2400) resolution
  • True solid-state and ruggedized
  • Brighter LEDs with exceptional color fidelity
  • 100-0% LED dimming for training at any time
  • Barco Pulse software ensures powerful processing and lowest latency
  • Also available: FS40-4K MKII with dedicated IR LED for NVG training

The FL40-4K MKII is the latest in the line of true solid-state simulation-ready projectors from Barco. Combining LED illumination technology with Barco Pulse electronics performance, the FL40 delivers visual excellence and extreme reliability with a low TCO. Dual iris and optical filters ensure optimal contrast and deeper black levels for best in class image clarity. Designed for the most demanding simulation environments, the FL40 delivers a vision to trust.

Extreme reliability in all situations

Using the latest LED illumination, the FL40 produces high brightness images with optimal clarity and color gamut. The FL40-4K is a native WQXGA resolution projector and uses the performance of Barco Pulse to show images up to 4K resolution (3840 x 2400). Thanks to the Single Step Processing (SSP®) technology in Barco Pulse the FL40 benefits from built-in warp and blend, high resolution images at higher frame rates with lower latency than competing technology.

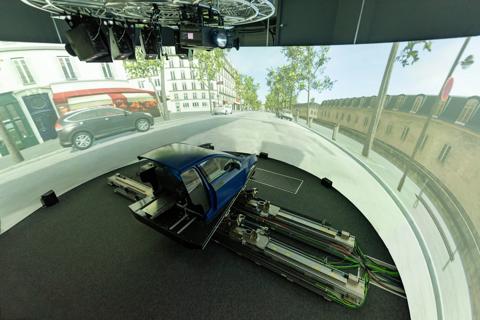

The Barco FL40 is a true solid-state projector designed for motion platforms with no moving parts. It is rock solid designed for shock and vibration. Its solid magnesium alloy baseplate act as mounting plate. Coupled with an array of mounting points in the front and on the top cabinet, they make this projector solid as rock and perfectly suited for use on motion platforms in any orientation.

Lowest TCO

The FL40 uses a proven DLP® sealed optical engine and the latest solid-state LED illumination. Simulator operators can benefit from reduced Total Cost of Ownership (TCO) with extended maintenance cycles and no lamp changes or color adjustments for up to 50,000hrs. Barco Constant Light Output (CLO) functionality ensures predictability in linear brightness performance over the life of the projector. Additional protection is available when using new intelligent high-efficiency air filters for installations in dusty and harsh environments.

Specifications

Download spec sheet
General specifications
Brightness
2,870 Typical ANSI Lumens
Contrast ratio
1800-6000:1
IR for NVG
no
Brightness uniformity
90%
Aspect ratio
16:10
Projector type
1DLP RGB LED
Resolution
3,840 x 2,400 (4K) / 2,560 x 1,600 (native)
Lens type
FLD+/FLDX
Optical lens shift
Vertical up to 146%, depending on lens
Horizontal up to 70%, depending on lens
Motorized zoom and focus (+ lens memory FLDX lenses)
Motorized lens shift (with position memory on all lenses)
Color correction
P7 RealColorTM
CLO (constant light output)
Yes
Light source
RGB LED
Light source lifetime
Up to 50,000 hours
Sealed DLP™ core
Yes
Orientation
360° rotation, no restrictions
3D
Active stereoscopic 3D
Image processing
Embedded warp & blend engine
Keystone correction
Yes
Inputs
2x DP1.2
2x dual link DVI-I
HDBaseT upgradable
HDMI 2.0 (HDCP2.2, HDR10)
RJ 45 Ethernet
RS232 in
2x USB
12v out
Input resolutions
Including and up to:
3,840 x 2,400 @ 60Hz
3,840 x 2,160 @ 60Hz
4,096 x 2,160 @ 60Hz
2,560 x 1,600 @ 120Hz
Input color depth
DVI: Including and up to 2560x1600@60Hz 8 bit RGB and 3840x2400@50Hz 8 bit RGB
DisplayPort: Including and up to 2560x1600@120Hz 12 bit RGB and 3840x2400@60Hz 8 bit RGB
Software tools
Projector Toolset
Control
IR, RS232, RJ45
Network connection
IR, RS232, RJ45
Power requirements
100-240V / 50-60Hz
Power consumption
500 W typical, 570 W maximum
BTU per hour
1,707 BTU/h typical, 1,945 BTU/h max
Noise level (typical at 25°C/77°F)
33 dB(A)
Operating temperature
10 - 40 °C (sea level)
Storage temperature
-20 to 60 °C
Operating humidity
20 - 80% RH
Storage humidity
10 - 90% RH
Dimensions (WxLxH)
450 x 457 x 244 mm / 17,7 x 18,0 x 9,6 in
Weight
21,5 kg / 47,4 lbs
Standard accessories
Power cord, wireless remote control
Certifications
CE, FCC Class A and cNus
Warranty
Limited 5 years parts and labor, extendable
