G100-W22

G100‑W22

22,000 lumen, WUXGA, single-chip laser phosphor projector

  • single-chip high-brightness projections
  • up-to-date input capabilities & future-proof design
  • full operational flexibility through wide lens range

100% image performance

The G100 series opens up the possibilities of our single-chip offering with higher brightness levels than before. It brings great image quality with an impressive lumens power for bright projections indoor and outdoor. What's more, the G100 supports all the latest input sources, including HDMI™ 2.0, to assure deep color palettes and qualitative projections.

Thanks to Barco's Projector Toolset software, installing and managing your projector(s) can be done from the comfort of your own computer with the intuitive user interface. In addition, the Ptoolset blending and warping capabilities, make these projectors a perfect fit for multi-channel media-based attractions like planetariums, domes, theatres and projection mappings.

100% flexibility

To enable full operational versatility and effortless implementation in different project designs, the G100 comes with a stable lens holder to guarantee reliable blending and non-moving images in multi-channel set-ups, and a new extensive GC-lens range supporting a throw ratio going from 0.38 up to a 10.8. It gives you flexibility to shoot from long/and or short distances, and to play with 360° orientation possibilities. The projector and its peripherals deliver the best outcomes for any creative project.

With the excellent onboard cooling the G100s can withstand a maximum ambient operating temperature of 50°C (122°F), and this all only at max. 42 dB noise levels.

100% reliability

Through its laser-phosphor light source and advanced cooling design, the G100 provides a long operating time (> 20.000 hrs) without need for lamp changes - resulting in considerable cost-savings on maintenance and consumables.

With its up-to-date and future-proof design the G100 is built to meet all your requirements in terms of image quality, reliability and sustainability.



Crestron Connect logo for G-series projectors

Specifications

Download spec sheet
General Specifications
Projector type
Single chip DLP laser phosphor projector
Resolution
1,920 x 1,200 (WUXGA) - 0.96" DLP chip
Brightness

22,000 ISO lumen / 20,600 center lumen / 18,500 ANSI lumen

23.750 ISO lumen (Super Bright mode)*

Brightness uniformity
90%
Contrast ratio
1,100:1 sequential; 5,500:1 dynamic; Extreme black: 100,000:1
Light source
Laser phosphor
Light source lifetime
Up to 20,000hrs
Aspect ratio
16:10
Orientation
360° rotation, no restrictions
Sealed DLP™ core
Yes
Color correction
Yes
CLO (constant light output)
Yes
Keystone correction
Yes
Image processing
Embedded warp & blend. Also available via Projector Toolset
3D
Active and passive stereoscopic 3D
Lens type
GC lenses - 0.65-0.75:1 / 0.84-1.02:1 / 1.02-1.36:1 / 1.2-1.5:1 / 1.5-2.0:1 / 2.0-4.0:1 / 4.0-7.2:1 / 7.2-10.8:1
FLDX lens - 0.38 : 1 UST 90°
Optical lens shift
Vertical up to 120%, depending on lens
Horizontal up to 50%, depending on lens
Motorized zoom and focus
Motorized lens shift
Inputs
2x HDMI™ 2.0b / DisplayPort 1.2a / DVI-D / HDBaseT / 3G-SDI / VGA (D-Sub 15 pin)
Input resolutions

Up to 4K UHD @60Hz

Refresh rates: 24Hz to 60Hz for WUXGA and 4KUHD (4096 x 2160 / 3840 x 2160)

4K input signals will be scaled to the projector’s output resolution

Software tools
Projector Toolset
Control
IR, RS232, RJ45, USB type A
Network connection
10/100 Ethernet, RJ45
Power requirements
100-240V / 50-60Hz
Power consumption
1200W nominal, 1380W maximum (@220V)
Standby power
less than 0.5W
BTU per hour
4095 BTU/h minimal, 4710 BTU/h maximum (@220V)
Noise level (typical at 25°C/77°F)
38dB(A) - 42dB(A) depending on the used mode
Operating temperature
0 - 50 °C (sea level)
Operating humidity
10 - 85% RH, non-condensing
Storage temperature
-10 to 60 °C
Storage humidity
5 - 90% RH, non-condensing
Dimensions (WxLxH)
without feet: 650 x 710 x 251 mm / 25.6 x 27.9 x 9.9 in
Weight
without lens: 54 kg / 119.0 lbs
Standard accessories
Power cord, wireless remote control
Certifications
CE, FCC Class A, cTUVUS, CCC, EAC, KCC, RCM, BIS, BSMI
Warranty
Limited 3 years parts and labor
TAA compliancy
Optional
*Note
* Only available on 220V input power and with lifetime of 16.500hrs @25°C/77°F

EssentialCare for Entertainment

EssentialCare maintenance contract & supplementary service options

  • 24/7 access to priority support
  • Rely on upfront replacements
  • Enjoy the peace-of-mind
  • Global coverage

You can now find all media, brochures, presentations, whitepapers & marketing downloads in our new & improved download center

Visit Media Center

Looking for technical documents or product support?

For technical downloads such as drivers, firmware, manuals, drawings & documentation we would kindly like to direct you to our product support page.

Go to product support

Related customer stories

2026 · United States

When light gives a voice to America’s first basilica

At the heart of Minneapolis, the Basilica of Saint Mary has become the stage for Luminiscence, an immersive 360° sound and light experience that reveals the story of America’s first basilica through projection, music and narration. Created specifically for this landmark, the show transforms the vast interior into a living canvas where architecture, faith and history unfold in light, inviting audiences to rediscover a national monument from an entirely new perspective.
Barco G-series lights up the Shanghai Greenhouse Garden with an immersive experience
2026 · China

Barco G-series lights up the Shanghai Greenhouse Garden with an immersive experience

Located in the heart of the Shanghai Expo Cultural Park, the Shanghai Greenhouse Garden features three themed pavilions - Coastal Sandbar, Cloud Forest, and Mist Canyon - showcasing rare global flora and breathtaking natural landscapes. Recently, the Shanghai Greenhouse Garden has unveiled a fantastical night tour, where Barco projectors create a mystical, romantic dreamscape. Through an ingenious immersive design, the installation seamlessly blends natural flora with enchanting light artistry, creating a breathtaking fusion of nature and imagination.

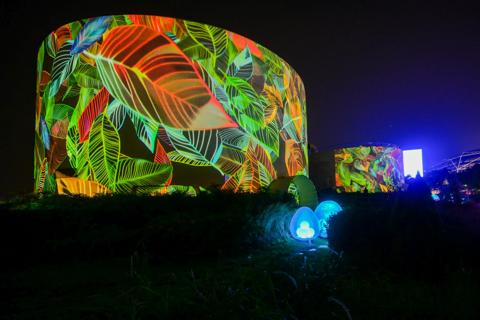

Barco projectors lights up the 2nd Shanghai International Lighting Festival
